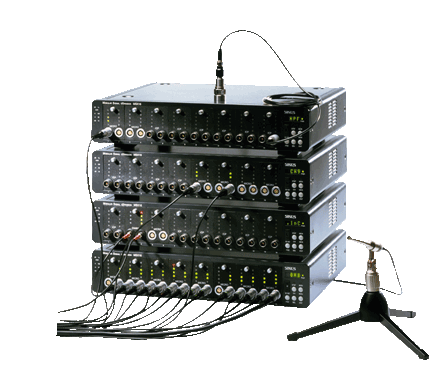

MSX16 is a flexible and expandable multi-channel data acquisition and signal processing unit for applications in research, development and testing.
Up to 8 MSX16 units can be directly connected to a PC by means of an interface card. The combination of a PC and MSX16 is the cost-effective alternative to signal acquisition with a recorder. A wide variety of software is available.
MSX16 features comfortable control of data acquisition via the PC, various online displays during the measurement and direct storage of measurement data on the hard disk or other storage media.
Flexibility is one of the most important advantages of the MSX16 concept. With a notebook and the MSX16 battery option, measurements and analyses can be performed independent of mains power. |
 |
|
|
ICP, microphone, charge amplifier and tacho input modules are available. User-specific input modules can also be supplied upon request. Microphone and ICP inputs are already prepared for the Smart Sensor Interface defined in IEEE P1451.4. The type and serial number of all input modules are automatically recognized: MSX16 is a "plug and play" system.
Applications: |
- Multi-channel data acquisition / machine monitoring
- Programmable filters, signal conditioner
- PC-based real-time analyzer (FFT, third-octave, octave)
- Multi-channel sound power measurement
- Dynamic balancing of rotors
- Pass-by measurements
|
|
|
|
|
|
|
Technical Data for item 982000.5 (Base unit for up to 8 modules) | | Input channels | | | Sampling frequency | 48 kHz | | Resolution | 16 Bit | | Frequency range | 0 to 20 kHz | | Frequency response | ± 0.5 dB, 0 dB @ 1 kHz | | Dynamic range | > 80 dB | | THD | < 0.01 % | | Cross-talk | < -80 dB | | Phase error between channels | < 1° | | Digital filters | A, B, C, D, M, Mi | | Coupling / analog input filters | see module descriptions | | Overvoltage detection | yes, also out-of-band frequencies | | Output channels | | | Connectors | 16 x BNC | | Level | ± 5 V (scalable) | | Impedance | 50 Ohm | | Power supply | | | Input voltage | 10.8 to 28.8 V | | Power consumption (typ.) | 2 A @ 12 V | | Optional Battery | 12 V / 4 Ah | | Other Parameters | | | Dimensions | 340mm x 65mm x 250mm | | Weight (empty) | approx. 3800 g | | Working temperature range | 0 to 40 °C | | Rel. air humidity | 20 to 80 % | | Vibration | 40 g, 11 ms half-sine |
|
Technical Data for all Modules | | Dimensions | 53mm x 34.8mm x 115.65mm | | Weight | ca. 300 g | | Working temperature range | 0...40 °C | | Rel. air humidity | 20...80 % |
|
Technical Data for item 982120.7 (ICP Module) |
| Connectors | 2x BNC | | ICP constant input | 2 mA | | Input couplings | AC, DC, HPF (10 Hz), LPF (2.5 kHz) | | Input ranges | (10, 5, 2, 1, 0.5, 0.2, 0.1, 0.05, 0.02, 0.01) V | | Max. overload voltage | ± 15 V | | DC linearity | < ± 0.1 % | | DC precision (gain) | < ± 0.2 % | | DC precision (offset) | < ± 0.15 % | | Crosstalk | < 80 dB | | THD | < 0.01 % | | Dynamic range | > 80 dB |
|
Technical Data for item 982121.5 (MICRO Module) | | Connectors | 2x LEMO7 | | Power supply | ± 14 V | | Polarisation voltage | 200 V (switchable) | | ICP constant input | 2 mA | | Input couplings | AC, DC, HPF (10 Hz), LPF (2.5 kHz) | | Input ranges | (10, 5, 2, 1, 0.5, 0.2, 0.1, 0.05, 0.02, 0.01) V | | Max. overload voltage | ± 15 V | | DC linearity | < ± 0.1 % | | DC precision (gain) | < ± 0.2 % | | DC precision (offset) | < ± 0.15 % | | Crosstalk | < 80 dB | | THD | < 0.01 % | | Dynamic range | > 80 dB |
|
Technical Data for item 982122.3 / 982123.1 (CHARGE Module) | | Connectors | 2x Microdots (982122.3) or 2x BNC (982123.1) | | Input couplings | DRCT, LPF1 (500 Hz), LPF2 (1 kHz), LPF3 (2.5 kHz) | | Input ranges | (10, 5, 2, 1, 0.5, 0.2, 0.1, 0.05, 0.02, 0.01) nC | | Max. overload voltage | ± 15 V | | DC linearity | < ± 0.1 % | | DC precision (gain) | < ± 0.2 % | | DC precision (offset) | < ± 0.15 % | | Crosstalk | < 80 dB | | THD | < 0.01 % | | Dynamic range | > 80 dB |
|
Technical Data for item 982124.8 (TACHO Module) | | Connectors | 2x LEMO4 | | Input range | TTL | | Pin connections | 1 = +
2 = -
3 = Ground | | Max. overload voltage | 10 V | | Precounter | 12.288 MHz
6.144 MHz
3.072 MHz
1.536 MHz
768 kHz
384 kHz
192 kHz
96 kHz |
| | | |
| | |
| |
|
|
|
|
