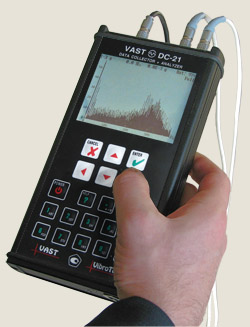

Model DC21

Dual Channel Vibration Analyzer and Data Collector

The DC-21 is a fully digital, two channel, spectrum analyzer and data collector. It is intended to make:

The DC-21 is a fully digital, two channel, spectrum analyzer and data collector. It is intended to make:

Condition monitoring and diagnostics measurements:
  • time wave form (oscilloscope mode)
  • vibration levels in different frequency bands according to ISO standards,
    RMS, true peak, peak-peak
  • peak factor
  • autospectra
  • envelope spectra selected from multiple bandpass filters
  • rotation speed
  • amplitude and phase of rotation speed and its harmonics
  • long duration time signal recording
Rotor balancing (optional)
  • 1, 2, or 3 plane balancing
  • 8 measurement points
  • balancing using known influence coefficients without trial runs
  • utilities for calculation of trial weights,summing, and splitting weights
  • balancing at multiple operating speeds
Test diagnostics
  • RPM/amplitude/phase characteristics during machine run-up/coast down (up to 16 channels simultaneously with optional multiplexer)
  • modal analysis, resonant frequencies, logarithmic decrement (damping coefficient) for certain frequencies (optional)
  • shaft alignment shim calculation from the results of measurements with sensors or from dial indicators (optional)
Features:
  • Light weight portable data collector
  • Full route capabilities
  • Accepts inputs from charge and ICP® accelerometers,voltage sensors, clamp-on current sensors, TTL tacho probes and other sensors
  • Transducer signal audio output to earphones
  • Internal power supply for tacho probe
  • Simple, six button operation
  • On-line context sensitive help system
  • Full screen spectrum display during and after measurements,cursor function
  • Digital Signal Processing technology enables fast download of setups and easy firmware upgrades
  • Host computer software for route or database loading and unloading and data analysis is included.
  • Optional software packages for balancing and conditiondiagnostics
  • Data communication and messaging via external modem
