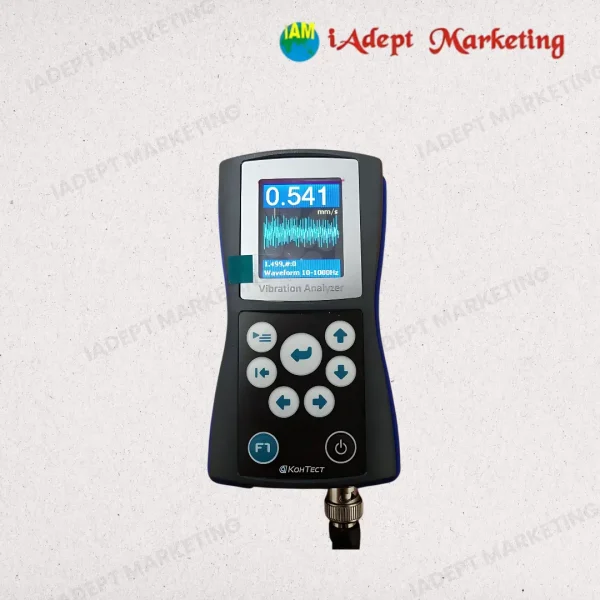

Vibration Data Collector 107VF-T2 With Temperature
| Parameter | Specification |
|---|---|
| Inputs | IEPE or charge type accelerometer with known sensitivity (switchable), Tachometer, and IR thermometer (optional) |
| AD Conversion | 24 bits |
| Dynamic Range | 106 dB |
| Frequency Range | 1 Hz to 10 kHz |
| Vibration Measurement Range | |
| Acceleration | 200 m/s² |
| Velocity | 200 mm/s |
| Displacement | 2000 μm |
| Accuracy | ±5% |
| Balancing | Single plane up to four planes and eight vibration points |
| Temperature Measurement Range | -70°C to 380°C |
| Temperature Accuracy | ±0.5% (0–60°C), ±1% (-40–120°C), ±2% (-70–180°C), ±4% (-70–380°C) |
| Tachometer Measurement Range | 10 to 200,000 rpm |
| Accuracy | ±0.1% and ±1 rpm |
| FFT Spectrum Resolution | 400, 800, 1600 lines |
| Data Storage | 4GB micro SD card, built-in |
| PC Interface | USB |
| Display | Color, sunlight-readable, 128 × 160 dots |
| Battery | Li-Po rechargeable, up to 8 hours of continuous operation |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | Not specified |
| Dimensions | 132 × 70 × 33 mm |
| Weight | 150 g |
| Temperature Measurement Accuracy | ±4% (for range -70°C to +380°C) |
- Description
- Reviews (0)
Description
Product Overview
The 107VF-T2 Vibration Data Collector with Temperature Measurement is a high-performance diagnostic device engineered for industrial condition monitoring applications. It offers precise vibration and temperature measurements, helping maintenance teams detect mechanical faults such as imbalance, misalignment, and bearing wear before they lead to costly downtime. Rugged, reliable, and easy to use, the 107VF-T2 is ideal for predictive maintenance and field diagnostics across a wide range of machinery.
Key Features
- Dual Sensor Compatibility: Works with IEPE and charge-type accelerometers with adjustable sensitivity, offering flexibility in field applications.
- High-Resolution Signal Processing: Utilizes 24-bit analog-to-digital conversion for highly accurate and detailed data collection.
- Wide Frequency Coverage: Monitors vibrations across a broad frequency range from 1 Hz to 10 kHz, suitable for most industrial equipment.
- Accurate Vibration Readings: Measures acceleration up to 200 m/s², velocity up to 200 mm/s, and displacement up to 2000 μm, with ±5% accuracy.
- Advanced Balancing Capabilities: Supports single-plane to four-plane balancing with up to eight vibration points, enabling comprehensive diagnostics.
- Integrated Temperature Monitoring: Optional infrared thermometer input, with a wide measurement range from -70°C to 380°C and high accuracy across temperature bands.
- Tachometer Input: Provides real-time speed measurement and phase tracking for deeper diagnostic insights.
- High Dynamic Range: 106 dB dynamic range ensures detection of both subtle and severe machine vibrations.
Product Specifications
The 107VF-T2 offers input options for IEPE or charge-type accelerometers, a 24-bit A/D converter, and supports a dynamic range of up to 106 dB. It covers vibration frequencies from 1 Hz to 10 kHz and provides accurate readings for acceleration, velocity, and displacement. With balancing capabilities across multiple planes and optional IR temperature input, it ensures complete condition monitoring coverage. Temperature measurement ranges from -70°C to 380°C with varying accuracy levels suited for industrial environments.
Why Choose iAdept Marketing
At iAdept Marketing, we are committed to delivering advanced solutions for industrial condition monitoring. Here’s why we stand out:
- Industry Expertise: With years of experience in vibration diagnostics and predictive maintenance, we provide reliable solutions backed by technical know-how.
- Comprehensive Support: From selection to setup and training, our team supports you every step of the way.
- Custom-Fit Solutions: We tailor our condition monitoring systems to meet your specific plant or equipment requirements.
- Proven Technology Partners: We bring you high-quality, globally trusted products like the 107VF-T2.
- Fast & Reliable Service: Quick delivery, responsive service, and long-term technical assistance.
Improve machine reliability and reduce downtime with the 107VF-T2 — your reliable partner in condition monitoring. Contact iAdept Marketing today to explore how it can fit into your maintenance strategy.
