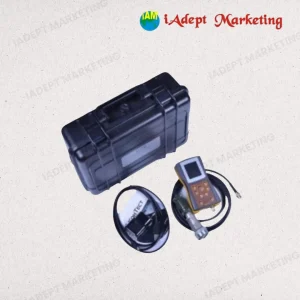

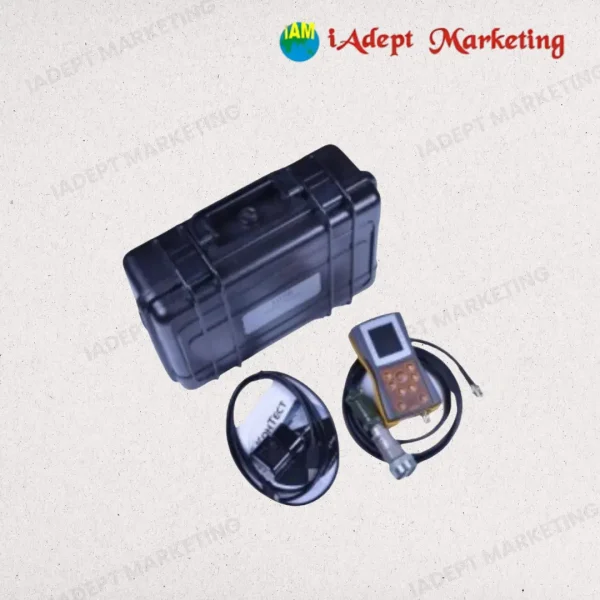

Vibration Data Collector 107VF-B Anlayzer With Single Plan Balancer
| Parameter | Specification |
|---|---|
| Inputs | IEPE or charge type accelerometers with known sensitivity, switchable. Optional optical RPM transducer with IR pyrometer sensor |
| AD Conversion | 24 bits |
| Dynamic Range | 106 dB |
| Frequency Range | 1…10000 Hz |
| Vibration Measurement Range | |
| Acceleration | 200 m/s² |
| Velocity | 200 mm/s |
| Displacement | 2000 µm |
| Accuracy | ±5% |
| Temperature Measurement Range | -70°C to 380°C |
| Temperature Accuracy | ±0.5% (0…+60°C), ±1% (-40…+120°C), ±2% (70…+180°C), ±4% (-70…+380°C) |
| Tachometer Measurement Range | 10…200,000 rpm |
| Tachometer Accuracy | ±0.1% and ±1 rpm |
| FFT Spectrum Resolution | 400, 800, 1600 lines |
| Data Storage | 4GB micro SD card, built-in |
| PC Interface | USB |
| Display | Color, sunlight readable 128×160 dots |
| Battery | Li-Po rechargeable, up to 8 hrs continuous operation |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Dimensions | 132 × 70 × 33 mm |
| Weight | 150 g |
- Description
- Reviews (0)
Description
Product Overview
The 107VF-B Analyzer is a compact and high-performance vibration data collector designed for condition monitoring and single-plane field balancing. With support for both IEPE and charge-type accelerometers, integrated tachometer input, and optional IR temperature sensing, it is ideal for predictive maintenance of rotating machinery. This portable analyzer delivers accurate FFT-based vibration analysis and real-time temperature measurements, making it a reliable tool for industrial diagnostics and asset health management.
Key Features
- Versatile Sensor Compatibility: Supports IEPE or charge-type accelerometers with switchable sensitivity settings
- High-Resolution Data Acquisition: 24-bit AD conversion with 106 dB dynamic range for precise signal capture
- Wide Frequency & Measurement Range: Frequency range from 1 Hz to 10,000 Hz; measures acceleration (up to 200 m/s²), velocity (200 mm/s), and displacement (2000 µm)
- Integrated Temperature and RPM Monitoring: Optional IR pyrometer and optical tachometer input for complete rotating machinery diagnostics
- Accurate Single-Plane Balancing: Built-in single-plane balancing capabilities for on-site correction of unbalance
- Fast & Flexible FFT Spectrum Analysis: Offers 400, 800, and 1600 line resolution for detailed signal breakdown
- Efficient Data Handling: 4GB internal micro SD storage with USB interface for data transfer to PC
- User-Friendly Display & Interface: Sunlight-readable color screen (128×160) with intuitive controls
- Long Battery Life: Rechargeable Li-Po battery offering up to 8 hours of continuous operation
- Durable & Portable Design: Compact (132 × 70 × 33 mm), lightweight (150 g), and rugged for field use
Product Specifications
- Vibration Inputs: IEPE / charge-type accelerometers
- Frequency Range: 1 Hz – 10 kHz
- Measurement Ranges: Acceleration: 200 m/s², Velocity: 200 mm/s, Displacement: 2000 µm
- Temperature Range: -70°C to 380°C
- Tachometer Range: 10 – 200,000 rpm
- FFT Resolution: 400 / 800 / 1600 lines
- Display: 128×160 color LCD
- Storage: 4GB micro SD (internal)
- Battery: Li-Po rechargeable, 8 hrs
- Weight: 150 g
- Operating Temp: 0°C to 50°C
- Storage Temp: -20°C to 60°C
Why Choose iAdept Marketing
- Experts in Condition Monitoring solutions tailored for industrial environments
- Trusted by global OEMs and maintenance teams for reliable vibration analysis equipment
- Superior after-sales service and technical support to ensure long-term ROI
- Innovative, portable solutions ideal for both field engineers and predictive maintenance teams
