Description

Product Overview

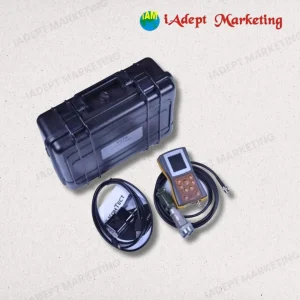

The 107VF-B1 Vibration Data Collector and Analyzer is a compact, handheld device engineered for advanced condition monitoring and field balancing of rotating machinery. Designed for reliability, portability, and precision, it combines multi-parameter vibration measurement, temperature monitoring, and a four-plane balancing function in a single instrument. The 107VF-B1 helps maintenance professionals identify mechanical faults early, optimize equipment health, and reduce unplanned downtime.

Key Features

• Dual Accelerometer Input: Compatible with IEPE or charge-type accelerometers, with switchable sensitivity settings.
• Advanced RPM and Temperature Inputs: Optional optical tachometer and IR pyrometer for accurate rotational speed and surface temperature readings.
• High-Resolution Signal Acquisition: 24-bit A/D conversion ensures highly accurate data capture across all input channels.
• Full-Spectrum Analysis: Covers a wide vibration frequency range from 1 Hz to 10,000 Hz.
• Vibration Measurement Ranges: Acceleration: up to 200 m/s², Velocity: up to 200 mm/s, Displacement: up to 2000 µm, ±5% accuracy
• Four-Plane Balancing: Performs dynamic balancing on up to four planes simultaneously, with support for multiple vibration points.
• Temperature Monitoring: Wide range from -70°C to 380°C with multi-level accuracy across different temperature bands.
• High-Speed Tachometer: Measures RPM from 10 to 200,000 with ±0.1% accuracy and 1 RPM resolution.
• FFT Analysis: Supports 400, 800, and 1600-line FFT spectrum resolution for precise frequency diagnostics.
• Data Storage and Transfer: Includes a 4GB built-in micro SD card and USB interface for seamless data handling.
• Bright Color Display: Sunlight-readable screen (128×160 dots) for easy viewing in harsh environments.
• Long Battery Life: Rechargeable Li-Po battery supports up to 8 hours of continuous operation.
• Rugged, Portable Design: Compact dimensions (132 × 70 × 33 mm) and lightweight (150 g), ideal for field use.

Product Specifications

The 107VF-B1 delivers high-performance vibration and temperature monitoring in one robust package. With support for accelerometers, optical tachometers, and IR sensors, it ensures accurate condition diagnostics across a broad range of machines. Its wide dynamic range, built-in data storage, and advanced FFT analysis tools make it ideal for both routine monitoring and complex diagnostics in the field.

Why Choose iAdept Marketing

At iAdept Marketing, we provide industry-leading tools and expertise in condition monitoring and predictive maintenance. Here’s what sets us apart:

• Specialized Knowledge: Decades of experience in vibration analysis, diagnostics, and machine health monitoring.
• Custom-Fit Solutions: We tailor tools like the 107VF-B1 to your specific industry and operational environment.
• Exceptional Support: From consultation to post-purchase training, our expert team ensures you get the best results.
• Trusted Products: We bring you globally recognized tools designed for industrial reliability and performance.
• Prompt Service: Fast response times, quick delivery, and full technical backup.

The 107VF-B1 Vibration Data Collector and Analyzer is your comprehensive solution for on-site condition monitoring and multi-plane balancing. Get in touch with iAdept Marketing to upgrade your predictive maintenance capabilities today.
