OMS LaserPoint LP01 Laser Doppler Vibrometer
| Specification | Details |
|---|---|
| Velocity Range | 2 microns/sec to 800 mm/sec |
| Frequency Range | DC to 20 kHz¹ |
| Working Distance | 0 to 5 m |
| Displacement Range | 50 pm to 100 mm |
| Signal Output | Analog Voltage (±10 V) |
| Low Pass Filters | 1, 2, 5, 10, 20 kHz |
| Laser (Measurement) | 780 nm, <20 mW, Class 3B |
| Laser Head Weight | 1.4 kg |
| Controller Weight | 3.9 kg |
- Description
- Reviews (0)
Description

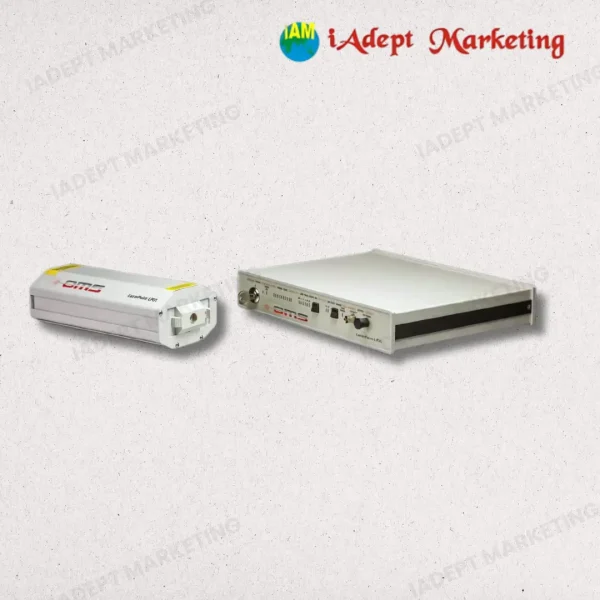

OMS LaserPoint LP01 Laser Doppler Vibrometer
The OMS LaserPoint LP01 is a compact and high-precision Laser Doppler Vibrometer (LDV) engineered for accurate, non-invasive measurement of velocity and displacement in various industrial and research applications. Designed for versatility and reliability, the LP01 offers excellent sensitivity across a wide frequency range—from static (DC) to dynamic (20 kHz).
Key Features
- Ultra-sensitive velocity detection from microns/sec to hundreds of mm/sec
- DC to 20 kHz frequency coverage for both static and dynamic measurements
- High displacement resolution down to 50 picometers
- Selectable low-pass filters for optimal signal conditioning
- Non-contact measurement avoids mass-loading effects
- Compact and portable design ideal for lab or field use
Typical Applications
- MEMS and microstructure vibration analysis
- Modal and resonance testing
- Structural health monitoring
- Biomedical vibration measurement
- Acoustic research and ultrasonic applications
