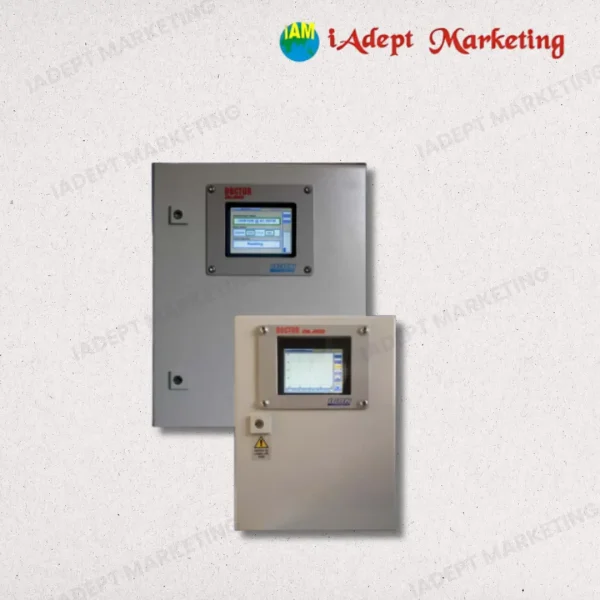

DK-200 Multi-Cylinder Online Diesel Engine Performance Analyzer

• Advanced Engine Diagnostic Vibration Monitoring System: The DK-200 Multi Cylinder Online Diesel Engine Performance Analyzer is a high-end diagnostic solution designed to work alongside a Vibration Monitoring System for real-time engine performance and condition monitoring.
• Multi-Cylinder Online Monitoring for Vibration Monitoring System: The DK-200 enables simultaneous pressure and crank angle analysis across multiple cylinders, enhancing the effectiveness of any Vibration Monitoring System in diesel engine applications.
• Real-Time Performance Analysis in Vibration Monitoring System: Designed for continuous online monitoring, the DK-200 provides instant insights into combustion efficiency, cylinder balance, and engine health.
• Industrial-Grade Vibration Monitoring System Solution: Built for harsh operating environments, the DK-200 delivers reliable diagnostics for marine, power generation, and heavy industrial diesel engines.

Pressure Measurement Capabilities

• Multi-Channel Pressure Measurement for Vibration Monitoring System: Supports 24 simultaneous channels (DK-200/L24) or 12 simultaneous channels (DK-200/L12), enabling detailed multi-cylinder analysis within a Vibration Monitoring System.
• Flexible Sensor Input Interface for Vibration Monitoring System: Accepts voltage or 4–20 mA inputs, ensuring compatibility with a wide range of pressure sensors used in Vibration Monitoring System applications.
• High Accuracy Pressure Measurement in Vibration Monitoring System: Provides typical amplitude accuracy of ±1%, ensuring precise combustion diagnostics.
• Signal Health Monitoring for Vibration Monitoring System: Automatically checks for out-of-range signals and cable faults to maintain data integrity.

Crank Angle Measurement

• Dual Crank Input Support for Vibration Monitoring System: Equipped with two crank input channels to ensure accurate speed and phase reference.
• Flexible Crank Input Modes in Vibration Monitoring System: Supports TDC-only or dual-mode crank sensing with automatic selection.
• Inductive Crank Sensor Compatibility for Vibration Monitoring System: Designed to work with inductive crank sensors for reliable engine synchronization.
• Stable Sensor Power Supply for Vibration Monitoring System: Provides a 24V DC nominal supply to crank sensors for consistent operation.

Recommended Cylinder Pressure Sensor

• Optimized Sensor for Vibration Monitoring System: Compatible with the Kistler 6613CG1/2 piezoelectric cylinder pressure sensor for high-fidelity measurements.
• High Sensitivity Measurement in Vibration Monitoring System: Nominal sensitivity of 50 µA/bar ensures accurate pressure capture.
• High-Temperature Capability for Vibration Monitoring System: Sensor head rated up to 350°C, ideal for demanding diesel engine environments.
• Industrial-Grade Cabling for Vibration Monitoring System: Supplied with high-temperature cable for reliable signal transmission.

Display & User Interface

• High-Resolution Display for Vibration Monitoring System: Features a 640 × 480 full-color VGA display for clear visualization of engine data.
• Touchscreen Interface for Vibration Monitoring System: Integrated capacitive touchscreen enables intuitive operation and quick configuration.
• Real-Time Visualization in Vibration Monitoring System: Displays pressure curves, total indicated power, cylinder Pmax, and power histograms during normal operation.
• Built-In Diagnostics for Vibration Monitoring System: Provides local diagnostics for setup, commissioning, and system validation.

Performance Specifications

• Wide Engine Speed Range for Vibration Monitoring System: Operates from 20 RPM to 3000 RPM, covering slow-speed to high-speed diesel engines.
• High Speed Resolution in Vibration Monitoring System: Resolution of 0.1 RPM up to 1820 RPM and 0.2 RPM up to 3000 RPM.
• High Sampling Rate for Vibration Monitoring System: The maximum sampling rate of 102.4 kHz ensures accurate combustion and vibration analysis.
• Flexible Update Rates in Vibration Monitoring System: The measurement update rate is adjustable based on averaging settings.

Communication & Connectivity

• Industrial Ethernet Connectivity for Vibration Monitoring System: Equipped with Ethernet 100Base-T for reliable data transfer.
• Standard RJ45 Interface for Vibration Monitoring System: Enables easy integration with plant networks, control systems, and data servers.

Mechanical & Environmental Specifications

• Rugged Enclosure for Vibration Monitoring System: Mild steel, powder-coated case with anti-vibration mounting ensures durability.
• Compact Industrial Design for Vibration Monitoring System: Available in two size variants to suit installation requirements.
• Harsh Environment Protection for Vibration Monitoring System: IP66 sealing ensures protection against dust, moisture, and harsh conditions.
• Wide Operating Temperature Range for Vibration Monitoring System: Operates reliably between -10°C and +60°C.
• Regulatory Compliance for Vibration Monitoring System: Fully compliant with CE and RoHS standards.

Power Supply

• Universal Power Input for Vibration Monitoring System: Supports 100–240 VAC, 50–60 Hz for global industrial applications.

Why Choose iAdept Marketing for Your Vibration Monitoring System

• Comprehensive Engine Health Monitoring with Vibration Monitoring System: Combines cylinder pressure, crank angle, and performance analysis for complete engine diagnostics.
• Online Continuous Monitoring for Vibration Monitoring System: Ideal for real-time condition monitoring and predictive maintenance strategies.
• High Accuracy and Reliability in Vibration Monitoring System: Trusted for critical diesel engine applications where precision is essential.
• Seamless Integration with Vibration Monitoring System: Complements vibration and condition monitoring systems for holistic machinery health assessment.
• Industrial-Proven Solution for Online Vibration Monitoring System: Designed for long-term operation in marine, power generation, and heavy industrial environments.
