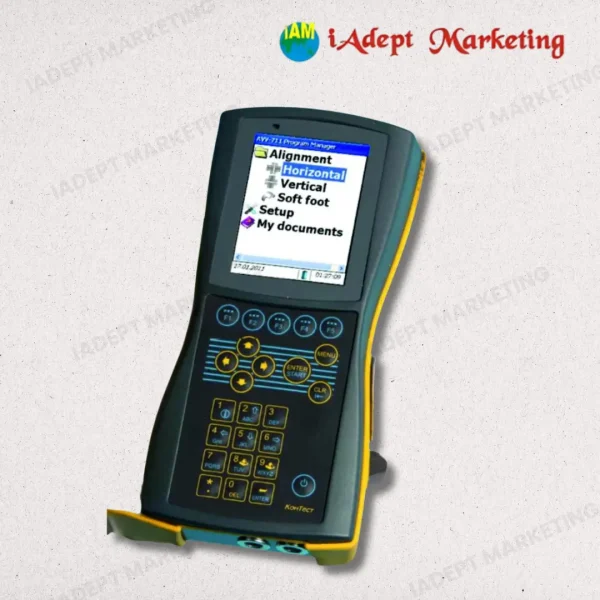

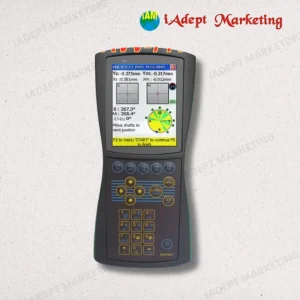

Laser Shaft Alignment System QB701 Laser Shaft Alignment System
| Control Display | |
|---|---|
| CPU | Ultra low power ARM Processor running at 533 MHz |
| Memory | 128 MB RAM, 128 MB Internal Flash, 4GB Ultra High Speed Memory |
| Display | Sunlight-readable backlit TFT colour graphic display with AR coating |
| Resolution | QVGA, 320 x 240 Pixel; Dimensions: 3.5 inch diagonal |
| Keyboard elements | Navigation cursor cross with up, clear and menu keys; Alphanumeric keyboard with dimensions, measure and results hard keys |
| LED indicators | On-screen Icon indicator for laser status and alignment condition 2 LED (Red+Green) for wireless communication and battery status |
| Power supply | Operating time: up to 10 hrs (LiPo rechargeable battery) |
| External interface | 1 x USB host for external memory (up to 32GB) 1 x USB slave for PC communication / Power bank quick charge RS232 (serial) for S & M transducers |
| Integrated wireless communication | up to 100m |
| Charging adapter | AC charging adapter / Direct USB charging |
| Environmental protection | IP 65 (dustproof and water spray resistant), shockproof |
| Accuracy of system | < 1% ± 0.01 m |
| Temperature range | 0 – 40 °C (32 – 104 °F) |
| Operating humidity | < 90% |
| Carrying case dimensions | 390 × 310 × 192 mm (15.4 × 12.2 × 7.6 in) |
| Total weight (incl. Case) | 3.5 kg (7.7 lbs) |
| Warranty | 1 years standard warranty + 2 additional year upon registration |
| CE conformity | EC guidelines for electric devices (2004/108 EWG) are fulfilled |
| Measuring units | |
| Housing material | ABS plastic |
| Type of laser | Diode laser |
| Laser wavelength | 650 – 675 nm |
| Laser safety class | 2 |
| Maximum laser power | 1 mW |
| Distance between measuring units | Up to 10 m (33ft) |
| Type of detectors | Single axis CCD, 30 mm (1.2 in) |
| Cable | Integrated wireless communication Class 1 (up to 100m) |
| Dimensions | 87 × 79 × 39 mm (3.4 × 3.1 × 1.5 in) |
| Weight | 115 gram (4.1 oz) |
| PC download | Plug in to PC by USB socket |
| Memory | 4GB, thousands of alignments |
| Softfoot check | Yes |
| Alignment tolerance check | Yes |
| User editable tolerances | Yes |
| Shaft diameter range | 20 – 1000 mm |
| Battery | up to 12 hours continuous use (rechargeable LiPo battery) |
| Sensors | Single axis CCD, 30 mm (1.2 in); electronic inclinometer ±0.1° |
| Communication | Integrated wireless communication, up to 100m |
| System Measuring distance | up to 10 m (33 ft.) |
| Measuring errors, displayed resolution | <1% ±10 μm; 1 μm / 10 μm (0.04/0.4 mils) |
| Shaft diameters | 20 to 250 mm (0.8 to 10 in.) diameter with supplied chains |
| Mounting system | 2 × V-brackets; 2 × chains; 2 × threaded rods per V-bracket |
- Description
- Reviews (0)
Description
QB701 Laser Shaft Alignment System
The QB701 is a precision-engineered laser shaft alignment system designed for high-accuracy alignment of rotating machinery. With advanced optics, wireless connectivity, and an intuitive control unit, it ensures reduced downtime, extended equipment life, and superior performance.
Key Features
- High-Performance Control Unit with 533 MHz ARM processor, 3.5″ sunlight-readable display, and intuitive navigation keys
- Wireless Communication up to 100 m with integrated Class 1 module, plus USB and RS232 ports for versatile connectivity
- Precision Laser Sensors using Class 2 diode lasers and CCD detectors, delivering <1% ±0.01 mm accuracy over 10 m
- Smart Alignment Software with Softfoot check, alignment tolerance evaluation, and editable user-defined tolerances
- Robust & Durable Design with IP65 protection, shockproof ABS housing, and reliable field performance in harsh environments
- Long Battery Life offering up to 12 hours of continuous use on rechargeable LiPo batteries
- Versatile Mounting for shaft diameters ranging from 20–1000 mm using V-brackets and chain system
- Large Internal Storage (4GB) to save thousands of alignment jobs, with easy USB download for reporting
Certifications & Warranty
- CE Compliant (2004/108 EWG)
- Standard Warranty: 1 year + 2 years additional upon registration
Ideal For
- Pumps, motors, fans, gearboxes, compressors
- Maintenance & reliability professionals
- Industrial environments requiring fast and accurate alignment
