Diesel Engines Performance Analyzer – DK-20
| Pressure Measurements | |
|---|---|
| No of Channels | Single channel (DK-20), two channel simultaneous (DK-20 F/V) |
| ICP Interfaces | 2.4mA at 24Vdc nominal |
| Input Voltage Range | ±7V |
| Connector Type | TNC |
| Bias Voltage Check | 25Vdc range for ICP bias voltage |
| Amplitude Accuracy | ±1% typical |
| CRANK INPUTS | |
| No of Channels | 2 |
| Modes | TDC ONLY or DUAL (with Auto-Select) |
| Connector Type | 6-way milspec |
| Crank Sensor Types | Inductive or optical |
| Crank Sensor Supply Voltage | 24Vdc nominal |
| RECOMMENDED CYLINDER PRESSURE SENSOR (KPS-1) | |
| Type | Kistler 7613C, piezoelectric |
| Nominal Sensitivity | 20mV/bar nominal (calibration certificate supplied) |
| Indicator Cock Adapter | Thompson Adapter with tube spanner for disassembly |
| Operating Temperature | 350°C at sensor head |
| Cable | High temperature cable supplied with sensor, length 1m |
| RECOMMENDED FUEL PRESSURE SENSOR (KFS-1) | |
| Type | Kistler 6792A, piezoelectric |
| Nominal Sensitivity | 2.5mV/bar nominal (calibration certificate supplied) |
| Mechanical Fitting | 1/2″ BSP male adapter (fitted to sensor) to fit standard fuel isolation valves |
| Operating Temperature | 200°C at sensor head |
| Cable | High temperature cable supplied with sensor, length 1m |
| DISPLAY | |
| Type | 640 × 480 full color VGA |
| Keypad | Integrated touchscreen (capacitive) |
| Measurement Start | Sealed GO button or screen touch |
| Technical Specifications | |
| PERFORMANCE | |
| Engine Speed Range | 20 RPM – 3,000 RPM |
| Resolution | 0.1° up to 1,820 RPM; 0.2° (1,820–3,000 RPM) |
| Max Sampling Rate | 102.4kHz |
| Measurement Storage | Over 20,000 traces |
| COMMUNICATIONS | |
| Communications Port | USB 2.0 |
| Connector Type | Mini-B, sealed |
| MECHANICAL | |
| Construction | High impact HPX plastic (yellow), press & pull latches, softgrip handle |
| Size | 30cm × 25cm × 12cm (meets airline carry-on regulations) |
| MECHANICAL | |
| Construction | High impact HPX plastic (yellow), press & pull latches, softgrip handle |
| Size | 30cm × 25cm × 12cm (meets airline carry-on regulations) |
| Weight | 2.6kg including test sensors |
| ENVIRONMENTAL | |
| Operating Temperature | -10°C to +55°C |
| Environmental Protection | IP66 (IP67 with lid closed) |
| CE Marked | Yes |
| POWER | |
| Power Source | Internal rechargeable Li-ion battery |
| Battery Charger (supplied) | 99Vdc output rated at 3A; input voltage 100-240Vac, 50-60Hz (unit can also be trickle-charged via the USB port) |
- Description
- Reviews (0)
Description
Diesel Engines Performance Analyzer – DK-20

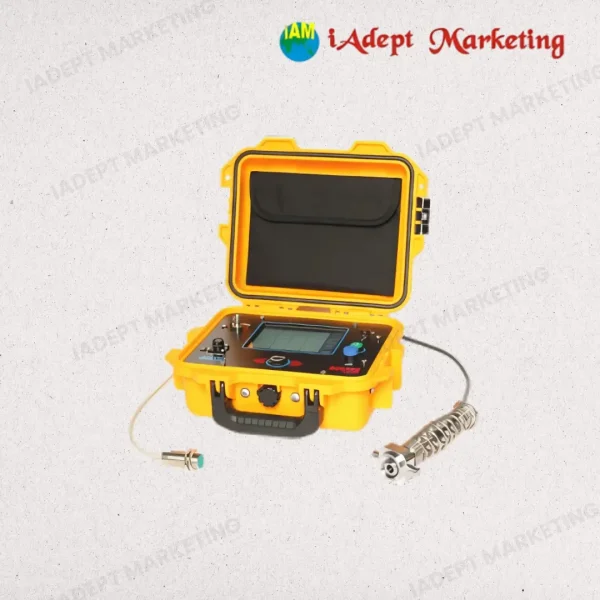

The DK-20 is a precision diagnostic tool engineered for real-time condition monitoring of diesel engines. Ideal for field technicians, engine developers, and maintenance engineers, it offers high-speed, accurate measurement of cylinder and fuel pressure with integrated crank analysis—providing comprehensive insights into engine health and performance.
