AVV-711 Laser Shaft Alignment System
| Control Display | |
|---|---|
| CPU | Ultra low power ARM Processor running at 533 MHz |
| Memory | 64 MB RAM, 256 MB Internal Flash, 2GB Ultra High Speed Memory |
| Display | (Sunlight-readable) backlit TFT colour graphic display with AR coating Resolution: QVGA, 320 × 240 Pixel; Dimensions: 3.5 inch diagonal Keyboard elements: Navigation cursor cross with up, clear and menu keys; Alphanumeric keyboard with dimensions, measure and results hard keys |
| LED indicators | On-screen Icon indicator for laser status and alignment condition 2 LED (Red+Green) for wireless communication and battery status |
| Power supply | Operating time: 28hrs (Ni-MH low self-discharge rechargeable battery) 13 hrs (disposable batteries) typical use (based on operating cycle of 25% measurement, 25% computation and 50% ‘sleep’ mode) Disposable Alkaline Batteries: 1.2 V AA [optional] NiMH rechargeable battery: 4.8 V / min. 2.5 Ah |
| External interface | 1 × USB host for external memory (up to 32GB) 1 × USB slave for PC communication / Power bank quick charge RS232 (serial) for S & M transducers Integrated wireless communication Class 1 transmitting power 100mW AC charging adapter / Direct USB charging |
| Environmental protection | IP 65 (dustproof and water spray resistant), shockproof Rubbersied grip chassis |
| Temperature range | Operation: 0°C to 55°C [32°F to 131°F] Storage: -20°C to 60°C [-4°F to 140°F] |
| Dimensions | Approx. 215 × 102 × 38 mm [8 7/16″ × 4″ × 1 1/2″] |
| Weight | Ultra-light 365 grams (without battery) |
| CE conformity | EC guidelines for electric devices (2004/108 EWG) are fulfilled |
| Transducers | |
| S & M Sensor Particulars | |
| 5-axis receiver | 2 planes (4 displacement axes) |
| Environmental protection | IP 67 (submersible, dustproof) |
| Ambient light protection | yes |
| Storage temperature | -20°C to 80°C [-4°F to 176°F] |
| Operating temperature | 0°C to 60°C [32°F to 140°F] |
| Sensor area | Dynamically extendible by Offset |
| Resolution | 1 µm (0.04 mil) for 2D |
| Measurement distance | up to 10 m |
| S & M Laser Particulars | |
| Type | GaAlAs semiconductor laser |
| Beam divergence | 0.3 mrad |
| Environmental protection | IP 67 (submersible, dustproof) |
| Beam power | < 1 mW |
| Wavelength (typical) | 675 nm (red, visible) |
| Safety class | Class 2, FDA 21 CFR1000 and 1040 |
| Safety precautions | Do not look into laser beam |
| Power supply | Not required unless using wireless module |
| Storage temperature | -20°C to 80°C [-4°F to 176°F] |
| Operating temperature | -20°C to 60°C [-4°F to 140°F] |
| Dimensions | approx. 64 x 58 x 45 mm [2 1/2″ x 2 1/4″ x 1 3/4″] |
| Weight | approx. 223 g [7.86 oz.] |
| Carrying case Particulars | |
| Standard | ABS, drop tested 2 m [6 1/2 ft] |
| Case dimensions | approx. 456 x 355 x 133 mm [17 15/16″ x 14″ x 5 1/4″] |
| Weight | including all standard parts: approx. 8 kg [17.6 lb] |
| Bluetooth Module for Wireless Communication w/ Transducer (Optional) | |
| Class | Class 1 connectivity, transmitting power 100 mW |
| Transmission distance | 100 m [330 ft.] |
| Compliance | Complies with FCC rules part 15.247 |
| LED indicators | 2 LED (red + green) for wireless communication and for battery status |
| Power supply | Batteries Li-Ion BL-5B |
| Operating time | 16 hours typical use (based upon an operating cycle of 50% measurement, 50% standby) |
| Operating temperature | -10°C to 50°C [14°F to 122°F] |
| Environmental protection | IP 65 (dustproof and water spray resistant), shockproof |
| Dimensions | Approx. 73 × 58 × 15 mm [2 7/8″ × 2 1/4″ × 9/16″] |
| Weight | Approx. 66 g [2.3 oz.] including batteries and cable |
- Description
- Reviews (0)
Description

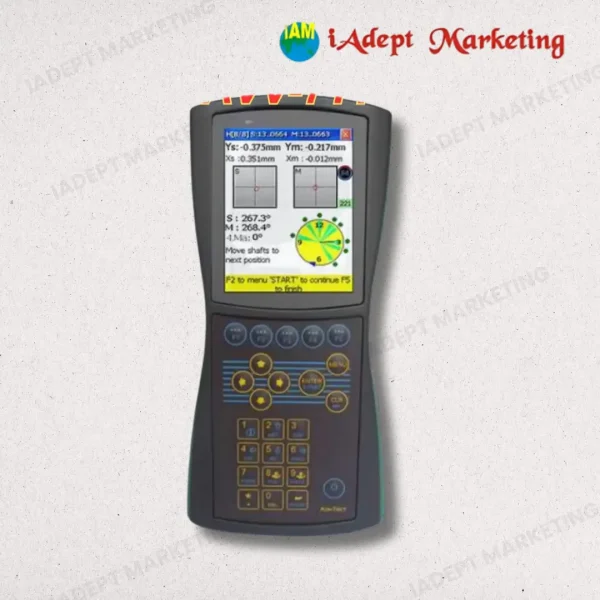

AVV-711 Laser Shaft Alignment System
The AVV-711 is a high-precision, industrial-grade laser shaft alignment system engineered for accurate and efficient machinery alignment across a variety of operating environments. Built with rugged hardware, intelligent software, and advanced communication capabilities, it enables technicians to achieve optimal alignment with minimal effort.
Key Features – Control Display Unit
- Powerful Processor: ARM-based ultra-low-power CPU (533 MHz) with 64 MB RAM, 256 MB internal flash, and 2 GB high-speed memory.
- High-Visibility Display: 3.5″ sunlight-readable TFT color screen with anti-reflective coating; QVGA resolution (320 × 240 pixels).
- User-Friendly Interface: Navigation cursor, hard keys (menu, results, measure), alphanumeric keypad, and on-screen LED indicators.
- Flexible Power Options: NiMH rechargeable battery with up to 28 hours of use; optional AA alkaline batteries provide up to 13 hours.
- Comprehensive Connectivity: USB host (external memory up to 32 GB), USB slave (PC communication/charging), and RS232 port for transducers.
- Wireless Capability: Built-in Class 1 Bluetooth with 100 m range and 100 mW transmission power.
- Rugged & Reliable Design: IP65-rated for dust/spray resistance, shockproof housing, and lightweight at 365 g (excluding battery); operating range: 0°C to 55°C.
Laser & Sensor Modules (S & M Transducers)
Sensor (5-Axis Receiver)
- Measures in 2 planes, 4 displacement axes
- Resolution: 1 µm (0.04 mil)
- Operating Range: Up to 10 m
- Environmental Rating: IP67 (submersible), resistant to ambient light
Operating temperature: 0°C to 60°C
Laser
- Type: GaAlAs semiconductor
- Wavelength: 675 nm (visible red)
- Beam Divergence: 0.3 mrad
- Power Output: < 1 mW (Class 2, FDA-compliant)
- Environmental Rating: IP67
- Compact size and lightweight: 223 g
Durable Carrying Case
- Material: Rugged ABS plastic, drop-tested (2 m)
- Size: 456 × 355 × 133 mm
- Weight: 8 kg with complete standard kit
Optional Wireless Bluetooth Module
- Class 1 wireless, 100m range
- Battery Life: Up to 16 hours
- Protection: IP65-rated, shockproof
- Compact & Lightweight: 66 g
Why Choose the AVV-711?
- Reliable and accurate shaft alignment even in harsh conditions
- Compact, portable, and easy-to-operate system
- Extended battery life with fast USB charging
- Clear and guided user interface with real-time feedback
- Industrial-grade durability and comprehensive environmental protection
- Wireless operation for enhanced flexibility
