Wireless Monitoring System – ITA 100 Series
| INPUTS Analog Channels (Dynamic and Process) |
|
|---|---|
| No of Channels | 16, multiplexed |
| IEPE Interface | 3.6mA at 24Vdc nominal |
| Other Coupling | AC or DC, configurable per channel (with optional DC offset removal) |
| Input Voltage Range | 20V p-p |
| Bias/Gap Measurement | +/-2.5V range for IEPE bias voltage and eddy probe gap measurement |
| Measurements | acceleration, bearing demod, (velocity by on-board hardware integrator or external software integration) |
| Gain Ranges | gain steps 1, 2.5, 10, 20, 50 and 100 |
| High Pass Filters | programmable 4th order with corner frequencies 0.5Hz, 2Hz, 10Hz and 100Hz |
| Amplitude Accuracy | ±2% typical in passband |
| Demodulation Function | digital demodulator for bearing assessment (HP and LP bandpass filter edges in programmable steps from 50Hz to 40kHz) |
| ADC | 24 bit |
| Sampling Rate | 64Hz to 102.4kHz |
| Bandwidth Ranges | 0.25Hz–25kHz to 0.25Hz–40kHz |
| Data Block Lengths | 64 to 520,000 |
| Spectral Lines (equivalent) | up to 51200 |
| Data Streaming Buffer Size | 14,250,000 samples |
| Data Streaming Rate | continuous data streaming up to 102.4kHz rate |
| Process Measurement | DC coupled process measurement option per channel with auto mains pickup removal (+/-10V range) |
| PROCESSING | |
| Processor | STM32F7 series with ARM Cortex M7 core |
| Memory | 64MB SDRAM, 32-bit wide |
| Non-volatile Storage | 128kB EEPROM for storage of network data, calibration data etc |
| Additional Storage | 32GB on-board flashdrive (removable) |
| RTC | real-time-clock for time-stamping of data |
| COMMUNICATIONS | |
| Network (LAN) | 100BaseT ethernet (RJ45 connector) |
| Network (WLAN) | 802.11b/g/n WiFi compatible (external antenna, 2.5dBi max) |
| Speed (WLAN) | up to 54 Mbits/sec |
| Encryption | WPA/WPA2 PSK (TKIP, AES) |
| Interface Port | USB user port |
| INDICATORS | |
| LCD Display | full VGA (640 × 480) colour touchscreen display |
| Relays | 2 × SPST isolated relay contacts for external LED’s/indicators/alerts |
| MECHANICAL | |
| Enclosure | DIN rail mount, aluminium rigid base |
| Dimensions | 29cm (11.5”) wide × 15cm (6.0”) high × 3cm (1.2”) deep, approx |
| Weight | 1.0kg (2.2 lbs) approx |
| Cable Connection | indirect connector, screw terminal |
| Certification | UL F.L. connection |
| Sealing | optional IP66 (Nema 4) sealed enclosure |
| POWER | |
| External Power | 10Vdc to 30Vdc |
| Isolation | external power input isolation to 1500V |
- Description
- Reviews (0)
Description

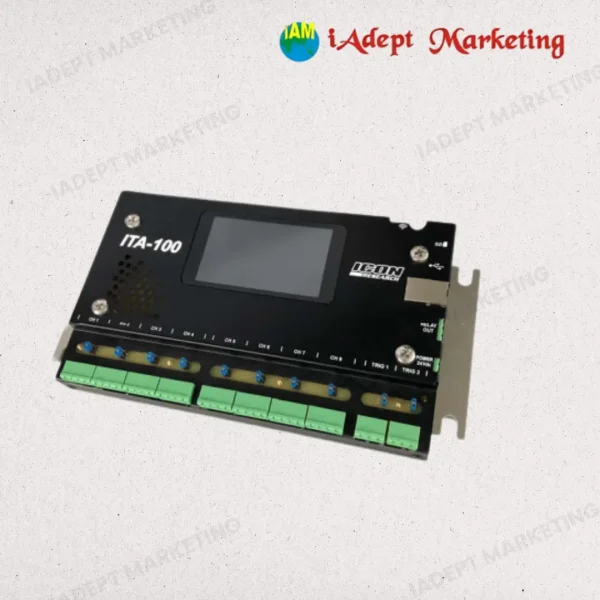

ITA 100 Series – Wireless Vibration & Process Monitoring System
The ITA 100 Series is a high-performance, compact vibration and process monitoring system designed for real-time condition monitoring in demanding industrial environments. With advanced data acquisition, flexible connectivity options, and built-in processing, it provides reliable insights for predictive maintenance and asset protection.
Key Features
- 16 Multiplexed Analog Channels – Supports both dynamic and process inputs
- Integrated IEPE Power – 3.6mA @ 24Vdc per channel
- Programmable Filters & Gain Ranges – Tailor each channel to the application
- High-Speed Data Streaming – Up to 102.4kHz sampling rate with 14.25M buffer
- Advanced Bearing Analysis – Digital demodulator for envelope detection
- Onboard Processing & Storage – Cortex M7 core, 64MB RAM, 32GB flash
- Wireless & Wired Connectivity – Wi-Fi (802.11 b/g/n) + Ethernet
- Rugged Industrial Design – DIN rail mount, optional IP66 sealed enclosure
Applications
- Online machine condition monitoring
- Remote vibration data acquisition
- Predictive maintenance for rotating equipment
- Integration with SCADA or cloud-based platforms
