Vibration Sensor General Purpose MTN/1100 Sensor
| Technical | |
|---|---|
| Standard sensitivity | 100mV/g ±10% nominal @ 80Hz |
| Frequency response | 2Hz to 10kHz ±5% (-3dB @ 0.8Hz) |
| Mounted base resonance | 18kHz (nominal) |
| Isolation | Base isolated |
| Dynamic range | ±80g |
| Transverse sensitivity | Less than 5% |
| Electrical noise | 0.1mg max |
| Current range | 0.5 to 8mA |
| Temperature range | -55 to 140°C |
| Bias voltage | 12V DC (nominal) |
| Case material | Stainless steel |
| Mating connector | MTN/MH002 |
| Maximum cable length | 1000m |
| Mounting torque | 8Nm |
| Weight | 110g (nominal) |
| Sealing | IP67 |
- Description
- Reviews (0)
Description

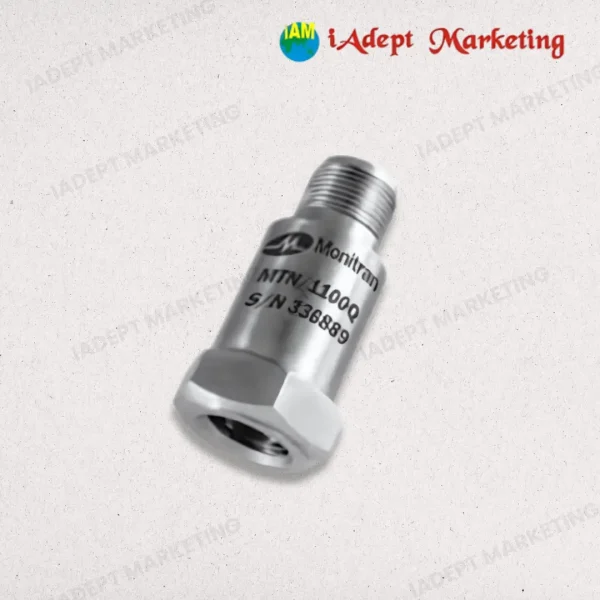

MTN/1100 General Purpose Vibration Sensor
The MTN/1100 Series is a robust general-purpose accelerometer designed for vibration monitoring in a wide range of industrial applications. With 100mV/g sensitivity, wide frequency response, and excellent durability, it is ideal for continuous monitoring of motors, pumps, fans, and gearboxes in harsh environments.
Key Features
- High Sensitivity: 100mV/g ±10% @ 80Hz for precise vibration readings.
- Wide Frequency Response: Effective from 2Hz to 10kHz (±5%) with extended resonance at 18kHz.
- Industrial-Grade Durability: Encased in stainless steel with IP67 protection, suitable for harsh operating conditions.
- Long Cable Reach: Supports cable lengths up to 1000 meters for flexible installation across plant environments.
- Base Isolated Design: Minimizes ground loop issues and enhances signal integrity.
Applications
- Predictive maintenance of rotating machinery
- Condition monitoring in manufacturing and processing industries
- OEM integration in industrial automation systems
- Long-distance sensor networks in large plants
