Description

Product Overview

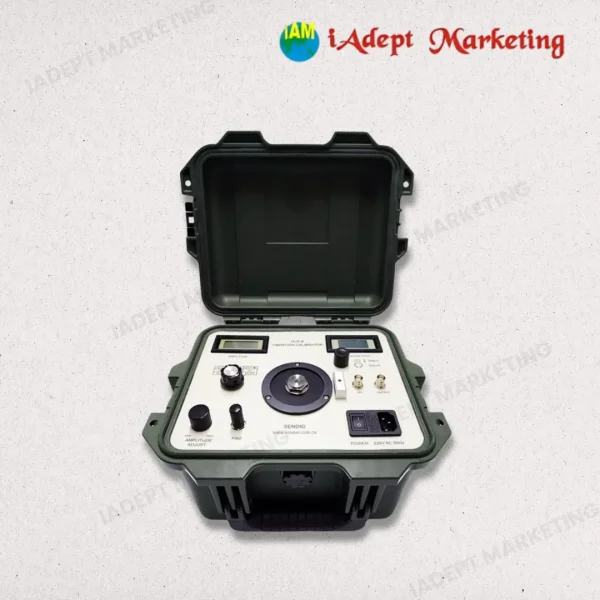

The GJX-6 Vibration Calibrator Shaker Table is a high-precision instrument designed for the calibration of vibration sensors, including accelerometers, velocity sensors, displacement probes, and proximity transducers. This device is engineered to deliver reliable, repeatable vibration signals across a wide frequency range, making it suitable for quality control, maintenance diagnostics, and research environments.

With its compact size, rugged design, and intuitive controls, the GJX-6 is ideal for on-site testing and lab-based calibration setups, helping ensure your condition monitoring systems operate with high accuracy and consistency.

Key Features

• Wide Frequency Range (10 Hz to 1280 Hz): Supports calibration of sensors for both low and high-frequency applications.
• Multi-parameter Vibration Output: Measures acceleration, velocity, and displacement with high amplitude precision.
• High Accuracy & Stability: Acceleration: ±0.3 dB to ±0.5 dB depending on frequency range, Velocity & Displacement: ±0.5 dB
• Proximity Probe Compatibility: Works with 5 mm and 8 mm probes for linearity testing up to 2.0 mm range.
• Real-Time Digital Display: Clear 3½-digit LED display shows vibration magnitude and frequency for quick analysis.
• Dynamic Load Handling: Built to accommodate various sensor weights without compromising amplitude accuracy.
• Rugged & Portable Design: Compact form factor with 5.2 kg net weight for field mobility.
• Broad Environmental Range: Operates from -20°C to 50°C, making it reliable in industrial and field conditions.
• Universal Power Compatibility: Operates on 220V AC with optional 110V for global usability.

Technical Specifications – GJX-6 Vibration Calibrator

• Frequency Range: 10 Hz to 1280 Hz
• Acceleration Accuracy (@10 m/s² pk): ±0.3 dB ±1 digit (40–320 Hz), ±0.5 dB ±1 digit (20–640 Hz)
• Velocity Accuracy (@25 mm/s pk): ±0.5 dB ±1 digit (40–320 Hz)
• Displacement Accuracy (@50 µm pk-pk): ±0.5 dB ±1 digit (40–320 Hz)
• Proximity Probe Compatibility: Supports 5 mm and 8 mm probes, 0–2.0 mm linear range
• Display: 3½-digit LED showing real-time vibration and frequency
• Size: 300 × 250 × 210 mm
• Weight: 5.2 kg net
• Operating Temperature: -20°C to 50°C
• Storage Temperature: -40°C to 70°C
• Power Supply: 220 Vac standard input (110 Vac optional)

Why Choose the GJX-6 for Vibration Calibration?

• Ideal for Maintenance Teams: Ensure vibration sensors in predictive maintenance and condition monitoring systems are calibrated and reliable.
• Improves Data Accuracy: Precise calibration improves sensor output quality, reducing false alarms and unplanned downtime.
• Lab & Field Ready: Small footprint and wide power/temperature range make it perfect for both industrial plants and mobile testing labs.
• Globally Compatible: Dual voltage capability and rugged construction support global deployment.
