Vibration Sensor Calibration Equipment – BST-VIB Vibration Calibrator Shaker Table
| Specification | Details |
|---|---|
| Frequency | 10, 20, 40, 80, 160, 320, 640, 1280 Hz ±0.01% |
| Measurement Units | Acceleration: m/s² (PEAK) Velocity: mm/s (RMS) Displacement: μm (PK-PK) |
| Amplitude Accuracy | Acceleration (@30 m/s² pk): 40–320 Hz ±0.3 dB ±1 digit; 20–1280 Hz ±0.5 dB ±1 digit Velocity (@25 mm/s pk): 40–320 Hz ±0.5 dB ±1 digit Displacement (@10 μm pk-pk, 80 Hz): 40–320 Hz ±0.5 dB ±1 digit |
| Proximity Probe Linearity | Probe: 5 mm and 8 mm Range: 0–4.0 mm |
| Display | 3½-digit display for acceleration, velocity, or displacement |
| Physical Dimensions | Size: 280 x 180 x 250 mm Weight: 20 lb |
| Environmental Temperature | Operation: 0°C to 50°C Storage: -20°C to 70°C |
| Humidity | Up to 90% (non-condensing) |
- Description
- Reviews (0)
Description

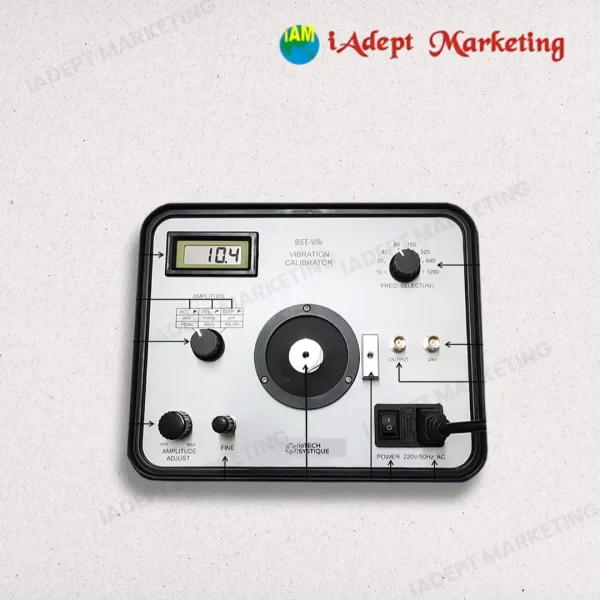

Product Overview: BST-VIB Vibration Calibrator Shaker Table
The BST-VIB Vibration Calibrator is a precision-engineered shaker table designed for the calibration and verification of vibration sensors, transducers, and proximity probes. Essential for ensuring accuracy in vibration measurement systems, the BST-VIB offers reliable, traceable performance across a wide frequency and amplitude range.
With selectable frequency steps, multiple output units (acceleration, velocity, displacement), and high amplitude accuracy, it is an indispensable tool in condition monitoring, predictive maintenance, and quality assurance environments.
Key Features
- Wide Frequency Range: Eight selectable frequencies — 10 to 1280 Hz, accurate to ±0.01%
- Multi-Unit Output: Measures and displays in acceleration (m/s² PEAK), velocity (mm/s RMS), and displacement (μm PK-PK)
- High Amplitude Accuracy: Acceleration: ±0.3 dB to ±0.5 dB, Velocity & Displacement: ±0.5 dB across most operational ranges
- Proximity Probe Support: Supports linearity testing for 5 mm and 8 mm probes with a range up to 4.0 mm
- User-Friendly Interface: 3½-digit display for direct readout of vibration levels
- Portable and Rugged: Compact form factor (280 × 180 × 250 mm), 20 lb weight for easy transport
- Wide Environmental Range: Operating temperature: 0°C to 50°C, Storage: -20°C to 70°C, with up to 90% humidity tolerance (non-condensing)
Applications
- Calibration of accelerometers and velocity sensors
- Verification of displacement transducers
- Field and lab sensor validation
- Set up and maintenance of vibration monitoring systems
- Condition monitoring equipment QA testing
Why Choose iAdept Marketing for Calibration Tools?
At iAdept Marketing, we understand the importance of measurement accuracy in condition monitoring. When you choose the BST-VIB calibrator through us, you benefit from:
- Trusted Quality Instruments: Precision-calibrated and field-tested equipment
- Expert Support: Assistance in setup, usage, and standards compliance
- Industrial Know-How: Decades of experience in vibration diagnostics and system calibration
- Fast Delivery & Local Service: Based in New Delhi with prompt service support across India
Ensure sensor accuracy and system reliability with the BST-VIB Vibration Calibrator — a critical tool for precise condition monitoring. Contact iAdept Marketing today for product availability or a demonstration.
