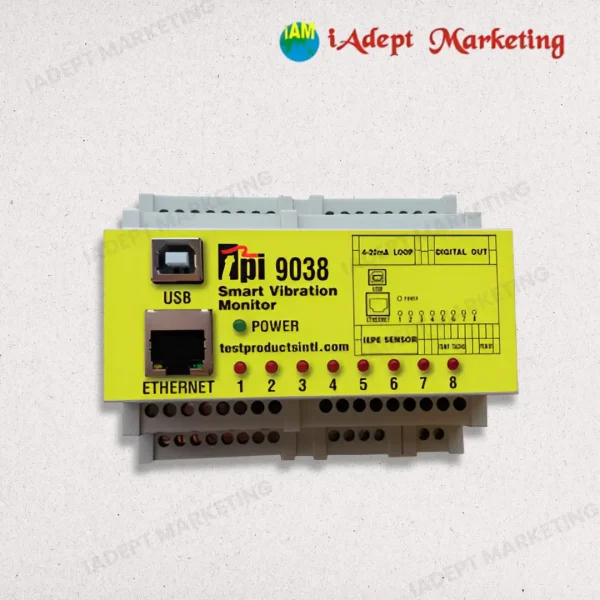

TPI 9038 Vibration Monitoring System

The TPI 9038 is a high-performance, 8-channel vibration monitoring system engineered for continuous condition monitoring in industrial environments. Designed for reliability and flexibility, it enables real-time insight into equipment health by integrating vibration, temperature, and speed measurements, with seamless PC and cloud connectivity.

Key Features:

• Eight IEPE Accelerometer Inputs: The system supports eight accelerometer channels, each capable of sampling from 2 Hz to 25.6 kHz, allowing for precise monitoring of machinery in a wide frequency range.
• Analog and Digital Outputs: It provides eight 4–20 mA output channels and eight 24VDC digital outputs. Each digital output supports a maximum current of 100 mA, and can trigger alarms based on channel-selectable acceleration or velocity thresholds.
• Integrated Tachometer and Temperature Inputs: A single tachometer input accepts 0V to +24VDC signals, enabling frequency-dependent alarm logic. A dedicated temperature input (typically 10mV/°C) allows for thermal monitoring alongside vibration diagnostics.
• Comprehensive Alarm Capabilities: Users can configure alarms per channel using acceleration and/or velocity parameters. The system supports eight vibration alarms and one temperature alarm, offering thorough protection against developing faults.
• High-Resolution Analysis: With FFT capability up to 51,200 lines, the 9038 enables detailed frequency spectrum analysis for advanced diagnostics. Time waveform data is available via optional C-Trend II software.
• Connectivity and Integration: The device connects via USB for local PC interfacing and Ethernet for remote monitoring through internet or cloud platforms. This ensures versatile deployment in smart factories and modern maintenance environments.
• Power and Installation: The unit operates on either USB or 24VDC power, drawing only 500 mA, and is designed for DIN rail mounting for ease of installation in control cabinets.
• Durability and Environmental Readiness: Built to IP50 standards, the TPI 9038 functions reliably in temperatures from 0°C to 55°C, making it suitable for most industrial environments.

Also Available: TPI 9034

A 4-channel version of the system offering identical capabilities in a more compact format for smaller monitoring setups.

Why Choose the TPI 9038?

• Real-time monitoring of eight channels with simultaneous temperature tracking
• High-resolution FFT analysis and waveform capture
• Channel-selectable alarm logic and configurable outputs
• Internet/cloud-ready for remote diagnostics and asset management
• Scalable, reliable, and designed for continuous operation in demanding industrial environments
