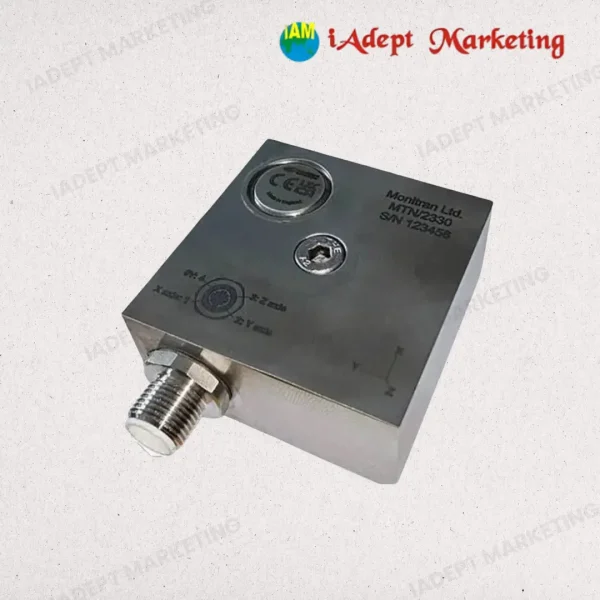

Triaxial Vibration Sensor Accelerometer MTN/2330T (Triaxial With Temperature)
| Specification | Details |
|---|---|
| Standard sensitivity | 100mV/g ±10% nominal @ 80Hz |
| Temperature sensitivity | 10mV/°C (range 2°C to 100°C) |
| Frequency response | 2Hz to 10kHz ±5% (-3 dB @ 0.8Hz) |
| Isolation | Base isolated |
| Transverse sensitivity | <5% |
| Acceleration range | ±80g |
| Operating temperature | -55°C to 140°C |
| Bias voltage | 12VDC (nominal) |
| Case material | Stainless steel |
| Mounting | MTN/2330T: ¼-28 UNF male MTN/2330TM6: M6 x 1.0 male MTN/2330TM8: M8 x 1.25 male |
| Connector | 5 pin M12 |
| Weight | TBA |
| Sealing | IP67 |
- Description
- Reviews (0)
Description
Triaxial Vibration Sensor – MTN/2330T Series
The MTN/2330T Series is a high-performance triaxial accelerometer designed for advanced condition monitoring and predictive maintenance in industrial environments. Offering three-axis vibration measurements along with a built-in temperature output, this sensor delivers comprehensive diagnostics for rotating equipment and structural assets.
Key Features
- Triaxial Vibration Measurement: Simultaneously measures acceleration along X, Y, and Z axes for precise analysis.
- Integrated Temperature Output: Temperature sensitivity of 10mV/°C across 2°C to 100°C, enabling thermal condition tracking.
- Wide Frequency Response: Operates efficiently across 2Hz to 10kHz (±5%), covering a broad range of machinery faults.
- Rugged & Reliable Design: Stainless steel housing, IP67-rated sealing, and base isolation ensure long-term reliability in harsh conditions.
- Flexible Mounting Options: Available with ¼-28 UNF, M6, or M8 mounting threads to suit different equipment setups.
Applications
- Multi-axis vibration diagnostics on motors, pumps, and turbines
- Gearbox and bearing condition analysis
- Structural health monitoring
- Thermal and mechanical stress monitoring in industrial assets
