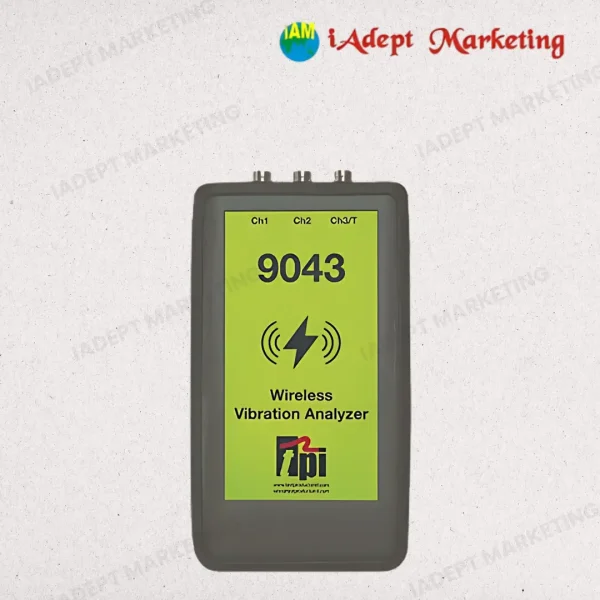

TPI 9043 -Vibration Analyzer
| Specification | Details |
|---|---|
| Simultaneous Channel Capture | 3 Channels |
| Input | IEPE (Powered and Unpowered), DC or AC voltage |
| Amplitude | +/-0.5V, +/-5V, +/-30V |
| Frequency Range / Resolution | 1-Channel Mode: DC to 30kHz, 100 to 51,200 Lines 3-Channel Simultaneous: DC to 10kHz, 100 to 12,800 Lines |
| BDU – Bearing Noise – Frequency Range | 1kHz – 10kHz |
| Dynamic Range | 108dB |
| A/D Converter | 24 bit |
| 9043 Sensor Inputs | |
| Sensor Connection | 3-Standard BNC Connectors |
| Sensor Types | millivolt sensors (e.g. accelerometer, velocity, displacement, temperature, tacho etc.) |
| Triaxial Accelerometer Compatible | Yes |
| Proximity Probe Compatible | Yes |
| Tachometer Input | Yes |
| 9043 Information | |
| Connection | Bluetooth or USB-C |
| Battery Life (Continuous Use) | Up to 15 hours |
| IP Rating | IP TBC |
| 9043 Headphone Compatible | |
| Bluetooth (A2DP) | Yes |
| ULTRA III App | Yes |
| Functional Features | |
| Screen Cursors | Single, Harmonic, Moving Harmonic, Sideband, and Time/Frequency for waveform |
| Band Alarms | Yes |
| Peak to Peak Displacement | Yes |
| No tachometer (4-run) Balancing | Yes |
| Single & Dual Plane Balancing | Yes |
| Balancing RPM (Range) Low Limit | 120 RPM |
| Diagnostic Features | Demod, Coast Down, Phase & Orbit Plots, Gap Voltage |
| Ultra III Route Transfer | USB-C, Bluetooth, Cloud |
- Description
- Reviews (0)
Description
TPI 9043 – Advanced Vibration Analyzer
The TPI 9043 Advanced Vibration Analyzer by Test Products International (TPI) is a robust, multi-channel portable device designed for high-precision predictive maintenance, machinery diagnostics, rotor balancing, and bearing fault analysis. With support for Bluetooth, USB-C, and cloud connectivity, it offers seamless data transfer and integration. This model is fully compatible with the ULTRA III App, enabling route-based data collection and advanced diagnostics in the field.
Optional Accessories
- Triaxial Accelerometer
- Magnetic or Stud Mount Accelerometers
- Laser Tachometer
- Bluetooth Headphones
- Protective Carrying Case
- Mounting Magnet, Stingers, Extension Cables
Ideal Use Cases
- Predictive maintenance and vibration monitoring in Motors, Fans, Gearboxes, Pumps, Compressors, Spindles
- In-plant route-based data collection and analysis
- Field service for rotating equipment diagnostics
- Real-time audio and visual vibration trend capture
- Balancing rotating machines in situ
