Symcad (Non Security) III Model TX20 Transportable 3D Body Scanner
| Feature | Specification |
|---|---|
| 3D Acquisition Time | 1 to 1.8 seconds (depending on configuration) |
| Ease of Use | Autonomous, includes voice assistance and user-friendly interface |
| Subject Positioning Control | Via pictogram (body outline only) |
| Sensitivity to Underwear & Skin Tone | Not sensitive |
| Lighting Conditions | Works in ambient light |
| 3D Acquisition Angle | Full 360° coverage |
| Multiple Posture Measurement | Several sequences with different subject postures |
| Measurement Extraction | 140+ body measurements extracted in < 30 seconds |
| Body Analysis Features | Body shape analysis and automatic posture classification |
| Measurement Accuracy | ± 0.15% on 1.60 m cylinder (≈ ± 2.4 mm) |
| Static Marker Detection | Detects stickers and other static markers on the body |
| Garment Size distribution Estimation | Estimates size distribution based on body morphology |
| Automatic Calibration | Within 2 minutes |
| Floor Space Requirement | Less than 3.3 m² |
- Description
- Reviews (0)
Description

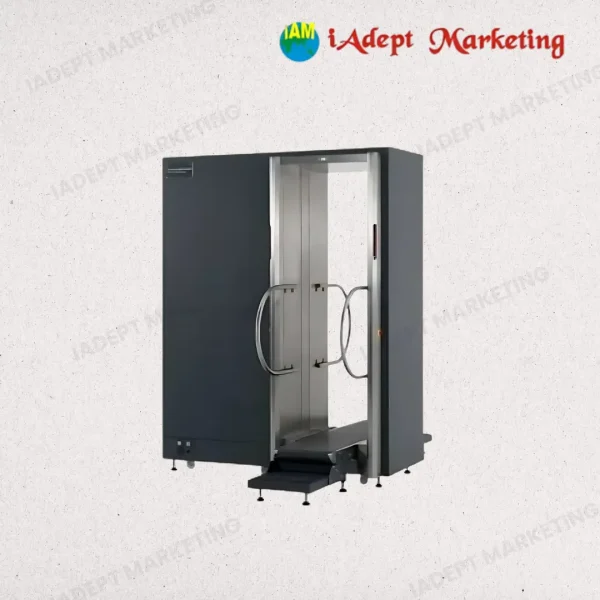

Symcad III TX20 – Transportable 3D Body Scanner
The Symcad III TX20 is a highly portable, full-body 3D scanning solution designed for non-security applications such as apparel design, ergonomics, health monitoring, and custom garment tailoring. Despite its compact footprint, it delivers comprehensive body shape analysis with exceptional speed and precision.
Key Features & Specifications
- Fast 3D Scanning: Captures a complete 360° body scan in just 1 to 1.8 seconds, ensuring a smooth and efficient user experience.
- User-Friendly Operation: Fully autonomous system with voice guidance and an intuitive interface using pictograms for easy positioning.
- Ambient Light Operation: Operates in normal lighting conditions—no need for special studio lighting.
- Over 140 Measurements in Seconds: Extracts 140+ precise body measurements in under 30 seconds for apparel fitting, health assessment, or posture analysis.
- High Accuracy: Measurement precision of ±0.15% on a standard 1.6m body cylinder (≈ ±2.4 mm).
- Multiple Posture Support: Supports various scanning sequences for different postures, enhancing its versatility.
- Static Marker Detection: Accurately identifies stickers or markers placed on the body—ideal for research and ergonomic studies.
- Body Shape Analysis & Classification: Automatically categorizes body shape and posture, ideal for custom clothing or ergonomic evaluations.
- Garment Size Distribution Estimation: Analyzes morphology to estimate garment sizes, streamlining fit prediction and mass customization.
- Fast Calibration: Fully auto-calibrated within 2 minutes—minimal downtime, maximum uptime.
- Compact Design: Requires less than 3.3 m² of floor space, making it ideal for mobile setups or confined spaces.
Why Choose iAdept Marketing for 3D Body Scanners?
- Precision You Can Trust: Our 3D scanners deliver laboratory-grade accuracy, suitable for tailoring, medical research, fitness, and retail.
- End-to-End Support: From installation and training to calibration and maintenance—iAdept provides full lifecycle service.
- Portable & Scalable Solutions: Whether you’re in a studio, store, clinic, or mobile unit, we help you deploy scanners wherever needed.
- Trusted by Top Brands: Partnered with leading textile, fashion, and research institutions across India.
- No Security Compliance Required: As a non-security model, the TX20 avoids additional regulatory hurdles—ideal for commercial and research use.
