Stroboscopes – Nova-Strobe BBX, BAX, DBX, DAX Stroboscopes/Tachometer
| Feature/Parameter | Specification/Description |
|---|---|
| Flash Range (Internal Mode) | 30 – 10,000 FPM (Flashes Per Minute) |
| Flash Rate Accuracy | ±1 FPM |
| Flash Rate Resolution | 1 FPM |
| Display Update Rate | Instantaneous |
| Time Base | Ultra Stable Crystal Oscillator |
| Display | LCD, 6 numeric 0.506in [12.85mm] digits & 5 alphanumeric 0.282in [7.17mm] digits |
| Indicators | Battery level |
| Knob Adjustment | Digital Rotary switch, 36 detents/rev, velocity sensitive |
| Memory | Remembers last setting before power down, restores on next power up |
| Flash Duration | 10–25 microseconds (auto adjusts with flash rate) |
| Flash Tube Life | 100 million flashes |
| Humidity | Max 80% up to 88°F [31°C], linear to 50% at 104°F [40°C] |
| Compliance | CE, LVD (2014/35/EU), EMC (2014/30/EU), RoHS (2011/65/EU) |
| bbx Specific: Input Power | Internal rechargeable batteries 6Vdc, external AC recharger (100–240Vac, 50/60Hz) |
| bbx Light Output (Average) | 13W typical >4000FPM |
| bbx Light Output (Instantaneous) | 230mJ/flash at 4000FPM |
| bbx Run Time | 2h at 1800FPM, 1h at 6000FPM |
| bbx Charge Time | 4–5h typical with PSC-2U |
| bbx Weight | 1.875lb [0.8505kg] including batteries |
| bbx Energy Efficiency | Firmware Rev 1.43+ complies with US DOE 10CFR 430.32(e), DoE CCMS database |
| bbx Energy Efficiency | Firmware Rev 1.43+ complies with US DOE 10CFR 430.32(e), DoE CCMS database |
| bax Specific: Input Power | AC: 115Vac or 230Vac, 35VA |
| bax Light Output (Average) | 15.5W typical >4000FPM |
| bax Light Output (Instantaneous) | 230mJ/flash at 4000FPM |
| bax Run Time | Continuous with temp limits; vents must not be restricted |
| bax Weight | 1.55lb [0.70kg] |
- Description
- Reviews (0)
Description
Nova-Strobe Series – BBX, BAX, DBX, DAX
The Nova-Strobe series from Monarch Instrument offers high-performance, rugged stroboscopes suitable for inspection, measurement, and motion analysis in a variety of industrial and laboratory settings. Designed for both portable and continuous-use applications, these models provide reliable performance with advanced features and energy-efficient operation.
Core Specifications (All Models)
- Flash Range (Internal Mode): 30 – 10,000 FPM (Flashes Per Minute)
- Accuracy: ±1 FPM
- Resolution: 1 FPM
- Display: High-contrast LCD (6 numeric + 5 alphanumeric digits)
- Flash Duration: 10–25 μs (auto-adjusts with rate)
- Flash Tube Life: Up to 100 million flashes
- Display Update Rate: Real-time
- Controls: Digital rotary knob with 36 detents/rev (velocity-sensitive)
- Memory: Auto-recall of last used setting
- Time Base: Ultra-stable crystal oscillator
- Humidity Tolerance: Max 80% at 31°C, linear to 50% at 40°C
- Certifications: CE, LVD, EMC, RoHS compliant

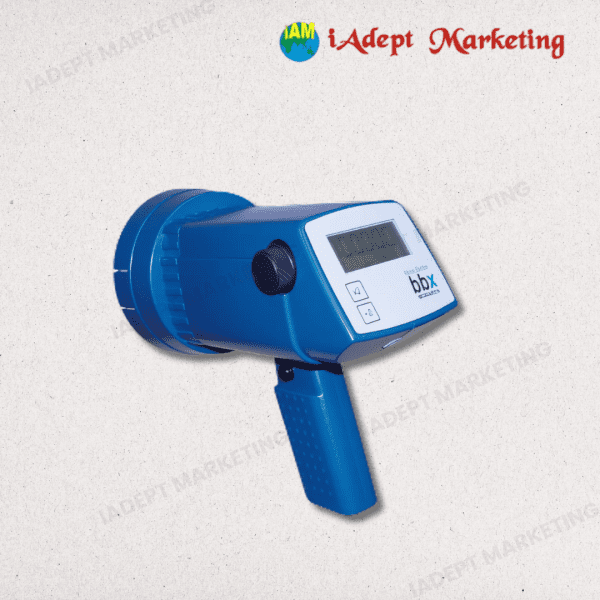

BBX – Rechargeable Battery-Powered Stroboscope
- Power Source: Internal 6V rechargeable batteries; includes external AC charger (100–240Vac, 50/60Hz)
- Average Light Output: 13W (at >4000 FPM)
- Peak Flash Energy: 230 mJ/flash at 4000 FPM
- Run Time: Up to 2 hours @1800 FPM, 1 hour @6000 FPM
- Charge Time: 4–5 hours with PSC-2U charger
- Weight: 0.85 kg (including batteries)
- Energy Efficiency: Compliant with US DOE 10CFR 430.32(e), firmware Rev 1.43+
BAX – AC-Powered Stroboscope
- Power Source: Direct AC (115V or 230V, 35VA)
- Average Light Output: 15.5W (at >4000 FPM)
- Peak Flash Energy: 230 mJ/flash at 4000 FPM
- Run Time: Continuous (with appropriate ventilation)
- Weight: 0.70 kg
Why Choose the Nova-Strobe Series?
- Precision Timing: Industry-leading ±1 FPM accuracy ensures precise diagnostics and inspection.
- Versatile Operation: Choose between portable battery (BBX) or continuous-use AC models (BAX).
- High Flash Energy: Consistent 230 mJ/flash output delivers clear imagery, even at high speeds.
- User-Friendly Controls: Digital rotary knob with instant LCD feedback for intuitive adjustments.
- Built to Last: Robust build, long lamp life, and global compliance make it a long-term solution.
- Energy Efficient: Meets stringent US Department of Energy standards for portable lighting tools.
