STD 500 Pen-Type Route Based Vibration Meter
| MEASUREMENT | |
| Sensor | built-in piezoelectric accelerometer |
| Measurement units | Acceleration, Velocity, Displacement (P-P, Peak, RMS), CF |
| Measurement range | 0.5 to 70 mm/s (0.02 to 2.76 in/s) RMS |
| Low frequency measurement | 10 to 1,000 Hz (±1 dB) |
| Enveloping measurement | 5 kHz to 15 kHz |
| Sampling | 8192 |
| Internal FFT | 3200 lines |
| Units | Metric and English |
| Memory | 8 MB, up to 500 waveforms |
| DISPLAY | |
| Type | graphic, monochrome, with backlight |
| Size | 122×32 px, 57×17 mm |
| PC CONNECTION | |
| Type | USB |
| POWER SUPPLY | |
| Type | LiPo, rechargeable |
| Operation during | up to 16 hours |
| Charging during | up to 4 hours |
| ENVIRONMENT | |
| Intrinsically safe | 1ExibIIBT3X |
| Case protection | IP54 |
| Operating temperature | -20°C … +50°C |
| Humidity | 90% |
| SIZE | |
| Dimensions | 186x35x21 mm (7.3×1.4×0.8 in) |
| WEIGHT | |
| Weight | 0.150 kg (5.3 oz) |
- Description
- Reviews (0)
Description

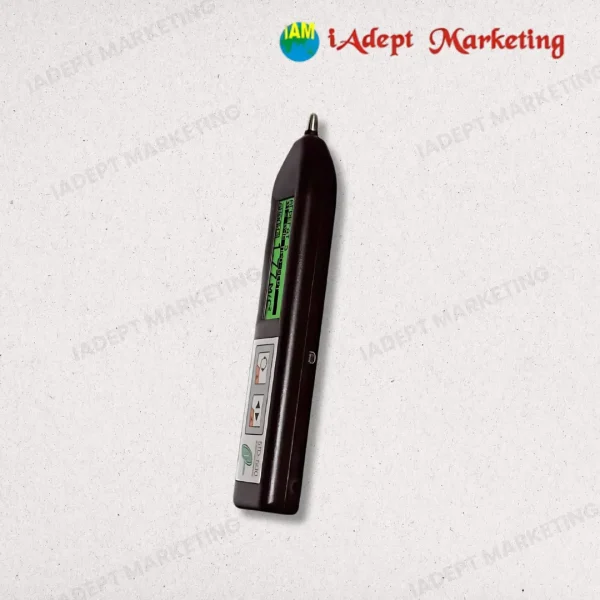

STD 500 Pen-Type Route Based Vibration Meter
iAdept Marketing, a leading Wholesaler, Trader, Importer, and Exporter of industrial electronic equipment, proudly presents the STD 500 Pen-Type Route Based Vibration Meter—a compact, efficient, and user-friendly device ideal for condition monitoring and predictive maintenance.
Designed with a pen-type ergonomic form, the STD 500 is lightweight and portable, making it perfect for one-handed use in tight or difficult-to-access locations. It supports route-based monitoring, enabling users to follow predefined measurement paths for consistent and systematic machine evaluation.
The device measures key vibration parameters such as velocity, acceleration, and displacement, helping maintenance teams detect early signs of mechanical faults including misalignment, imbalance, and bearing issues. It offers internal memory to store readings, and supports PC connectivity for detailed analysis and reporting.
Ideal for use in industrial plants, power stations, HVAC systems, and manufacturing units, the STD 500 improves maintenance efficiency, reduces downtime, and extends machinery life.
Key Features:
- Compact and lightweight pen-type design
- Route-based vibration measurement
- Measures velocity, acceleration & displacement
- LCD display with intuitive controls
- Built-in data storage & PC connectivity
- Rechargeable battery for long operational life
