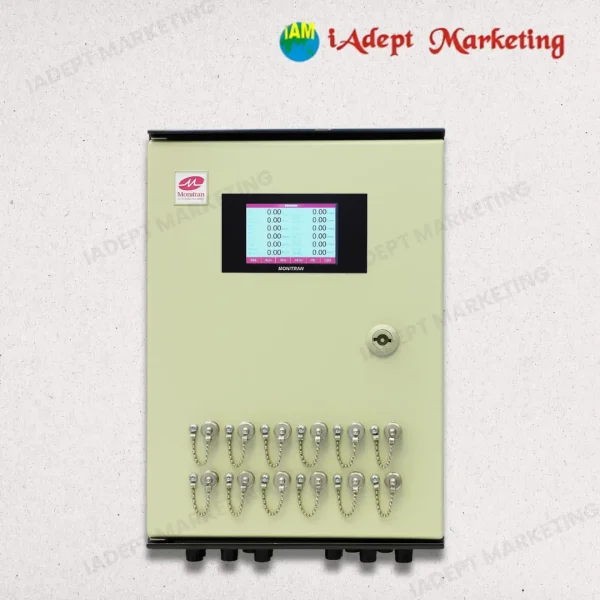

MTN/5000 – Microcontroller-Based Condition Monitoring System

The MTN/5000 from Monitran is a robust, compact, and intelligent microcontroller-based condition monitoring system designed to capture, visualize, and analyze vibration and sensor signals across multiple channels. Built for reliability and precision, this system supports up to 12 analogue inputs and provides real-time insights to help engineers detect and prevent potential machine failures.

Key Features

• Multi-Channel Monitoring: Supports up to 12 analogue channels for simultaneous data acquisition.
• High-Speed Sampling: Captures data at speeds of up to 1,000,000 samples/sec, enabling accurate detection of transients and anomalies.
• Interactive Display: Equipped with a 3.5-inch full-colour TFT touchscreen (480 × 320 resolution) for intuitive, on-site operation and analysis.
• Configurable Inputs: Input ranges vary based on the connected sensor, making the system adaptable to a variety of signal types and machinery.
• Efficient Data Buffering: Integrated sample buffer of 12 × 100 samples ensures smooth data collection and processing.
• Compact & Rugged: Housed in a durable enclosure with a footprint of just 350 × 250 × 200 mm, suitable for industrial environments.
• Low Power Consumption: Operates on 24 VDC, making it ideal for mobile and remote monitoring setups.

Applications

• Predictive and preventive maintenance
• Industrial equipment health tracking
• Rotating machinery vibration monitoring
• Data collection in R&D environments
• Condition-based maintenance (CBM) programs

Product Specifications

• Model: MTN/5000
• Brand: Monitran
• Number of Channels: 12 Analogue Inputs
• Sampling Speed: Up to 1,000,000 samples/second
• Input Range: Sensor-dependent
• Sample Buffer: 12 × 100 samples
• Input Voltage: 24 VDC
• Display: 3.5″ TFT Touchscreen (480 × 320, 24-bit colour)
• Dimensions: 350 × 250 × 200 mm

Why Choose the MTN/5000 for Condition Monitoring?

• Reliable real-time diagnostics with high-speed data capture
• Flexible sensor compatibility makes it suitable for various applications
• User-friendly interface for field operators and engineers
• Compact design ideal for fixed or portable installations
• Developed by Monitran, a trusted name in vibration and monitoring technology
