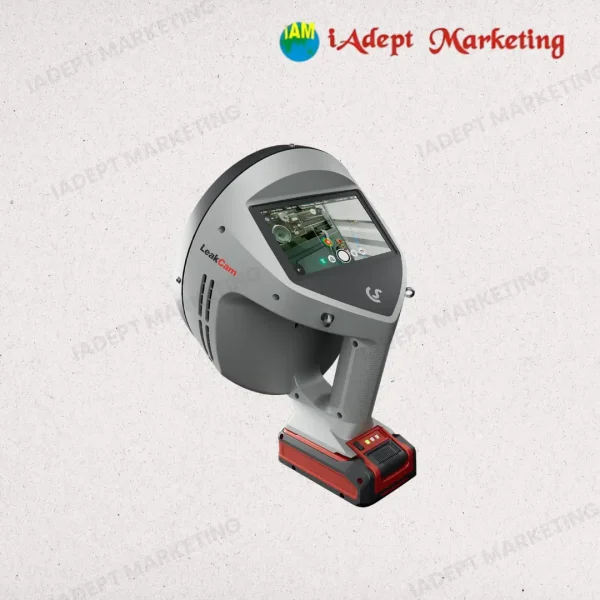

LeakCam 600 (LC600) Leak Detector
| Feature/Parameter | Specification/Description |
|---|---|
| Microphones | Quantity: 64 MEMS microphones Frequency range: 2–80kHz |
| Measuring Range | System pressure: >250mbar Distance: 0.3–120m Sensitivity: 2l/h from 3m |
| Camera | Resolution: 13MP Field of View: 77.3° diagonal 8x digital zoom Autofocus High Dynamic Range (HDR) Illumination: 5 LEDs |
| Laser | Wavelength: 630–660nm Output power: <1mW (laser class 2) |
| Display | Size: 5″ Resolution: 1280 × 720 pixels Touch screen: capacitive Brightness: adjustable |
| Interface | USB interface A+C |
| Data Logger | 128GB SD memory card (100 million values) |
| Power Supply | Internal rechargeable Li-ion batteries Approx. 2.5h continuous operation (2Ah) Approx. 5h continuous operation (4Ah) |
| Operating Temperature | −5°C to +50°C |
| EMC | DIN EN 61326 |
| Weight | Main body (without battery): 1130g (39.85oz) 18V 2Ah, Einhell Power X-Change battery: 400g (14.10oz) 18V 4Ah PLUS, Einhell Power X-Change battery: 595g (20.9oz) |
| Handling | One-handed or freehand |
- Description
- Reviews (0)
Description
LeakCam 600 (LC600) – Ultrasonic Acoustic Imaging Leak Detector
The LeakCam 600 (LC600) is a next-generation ultrasonic leak detection device that combines a 64-microphone acoustic array, HD camera, and advanced digital imaging to precisely identify pressurized air, gas, and vacuum leaks in industrial systems. Engineered for reliability, sensitivity, and portability, the LC600 is the ideal tool for energy audits, predictive maintenance, and facility diagnostics.
Key Advantages
- High Sensitivity Acoustic Detection: Identifies minuscule leaks quickly and accurately—even at a distance
- HD Visual and Audio Overlay: Combines real-time leak sound localization with camera feed for intuitive fault spotting
- All-Day Data Logging: Capture up to 100 million data points on a swappable SD card
- Portable & Ergonomic: Lightweight and designed for one-handed use, ideal for maintenance routes
- Adaptable Power Options: Compatible with industry-standard Einhell Power X-Change batteries
Ideal Applications
- Compressed air and gas leak detection
- Steam trap inspection
- Vacuum system integrity testing
- HVAC system maintenance
- Energy audits and leak cost analysis
- Predictive maintenance in industrial facilities
Included in Standard Package
- LeakCam 600 main unit
- 13MP visual camera with HDR
- Integrated LED illumination
- USB A + C data cables
- 128GB SD card
- Laser pointer (Class 2)
- 18V battery (2Ah or 4Ah) – optional based on model
- Rugged carrying case
Why Choose LeakCam 600?
- High Sensitivity & Range: Detects leaks as small as 2 l/h from 3 meters and covers distances up to 120 meters, ensuring accuracy even in large or noisy environments.
- Integrated Acoustic & Visual Imaging: Combines a 64-microphone array with a 13MP HDR camera and acoustic overlay for real-time pinpointing of leak sources.
- User-Friendly Operation: Features a touchscreen interface, autofocus, zoom, and one-handed use for fast, intuitive inspections—no specialized training needed.
- Long Battery Life & Portability: Up to 5 hours of cordless operation with Einhell Power X-Change batteries and a compact design ideal for field or facility use.
- Robust Data Logging: Built-in 128GB memory stores millions of data points, supporting audit trails, maintenance planning, and compliance reporting.
