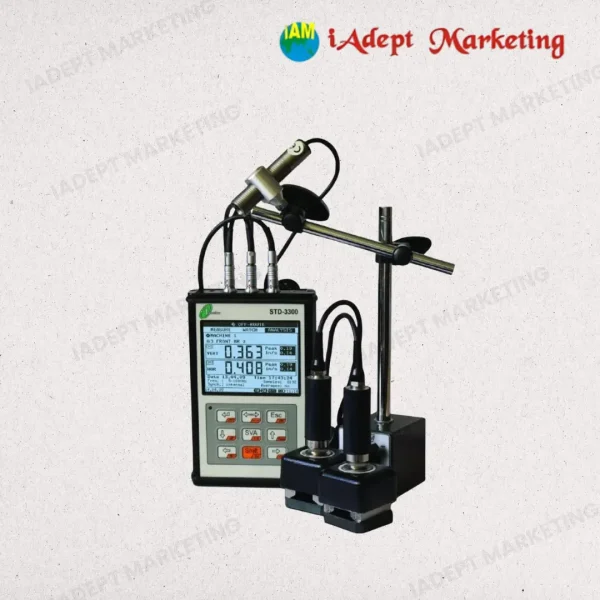

Intrinsically Save FFT Anlayzer – STD-3300 EX Vibration Data Collector

Viba8 Hand-Arm and Whole Body Vibration Meters
FFT Anlayzer – STD-3300 Vibration Data Collector
0 out of 5
( There are no reviews yet. )

Specification Details
Measurement channels 2 analog inputs, 1 tacho input
Sensor type VP-9, VP-11, ICP sensors, tacho-optical sensors, lasers, proximity switches, stationary key phasors, connection to on-line condition monitoring systems
Measurement parameters RMS, Peak, Peak-to-Peak, time waveform, spectrum of acceleration, velocity, displacement, envelope waveform, envelope spectrum, orbits, Run-up/Coast-down, real time measurement; route and off-route data acquisition
Frequency range Fmin: 0 … Fmax Hz
Fmax: 500 Hz … 32 kHz
Measurement range (VP-9, RMS) Displacement: 0 … 10 mm
Velocity: 0 … 100 mm/s
Acceleration: 0 … 500 m/s²
Spectrum resolution 3200, 6400, 12800, 25600 lines
Sampling 8192, 16384, 32768, 65536 points
Averaging: 0 … 256
Averaging type: linear
Threshold (per each channel) 2
Memory Flash 256 MB (option 2 GB); RAM: 32 MB
ADC 2×24 bits
Dynamic range: up to 109 dB
Sample rate: up to 82 kHz
Accuracy ±1%
Balancing Shaft speed: 10 … 60,000 RPM
Measurement types: acceleration, velocity, displacement
Number of balancing planes: 1 or 2
Display Graphic LCD, monochrome, with backlight, 320×240, 3.8″
Temperature -20 … +50°C
Size 6.7″ × 4.3″ × 1.4″ (170 × 110 × 35 mm)
Weight 0.700 kg
Protection class IP54
Power supply Ni-MH, rechargeable
Operating time 18 hours
Category:
Product Brochure
WhatsApp Now

Description

STD-3300 EX Intrinsically Safe FFT Analyzer | Vibration Data Collector by iAdept Marketing
Advanced Vibration Analysis for Hazardous Areas — Available Across India

The STD-3300 EX Intrinsically Safe FFT Analyzer from iAdept Marketing is a high-performance, explosion-proof vibration data collector and analyzer built specifically for hazardous industrial environments such as oil & gas, chemical, petrochemical, mining, and refineries. Designed to meet global safety standards, this device offers advanced vibration diagnostics in Zone 1 & Zone 2 hazardous areas, where traditional instruments fail.

With its built-in Fast Fourier Transform (FFT) analysis capabilities, the STD-3300 EX delivers real-time insights into machine conditions, helping you detect imbalances, misalignments, bearing faults, and other critical mechanical issues before they lead to costly downtime or failures.

Key Features:

  • Intrinsically Safe (EX Certified) – Ideal for use in explosive environments

  • Advanced FFT Analysis – Real-time frequency spectrum for detailed diagnostics

  • High-Resolution Display – Easy-to-read graphical data on-site

  • Portable & Rugged Design – Lightweight yet robust for field usage

  • Massive Data Storage – Store large amounts of machine data with timestamps

  • Rechargeable Battery – Long runtime for extensive plant rounds

Industrial Applications:

  • Oil & Gas Refineries

  • Chemical & Petrochemical Plants

  • Mining Operations

  • Power Generation Units

  • Fertilizer and Pharma Plants

Whether you’re based in Mumbai, Delhi, Chennai, Vadodara, Jamnagar, Vizag, Hyderabad, or any major industrial zone in India, iAdept Marketing provides complete delivery, service, and support for the STD-3300 EX across the nation.
