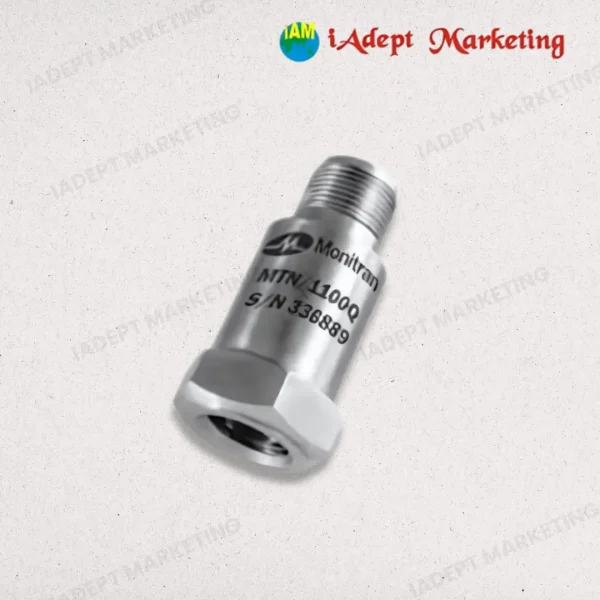

General Purpose MTN/1100 Sensor

Specification Details
Output Current 4–20 mA DC proportional to RMS velocity (mm/s)
Supply Voltage 12–32 V DC (for 4–20 mA output)
Frequency Response 2 Hz to 1 kHz ±10%
Mounted Base Resonance 5 kHz (nominal)
Isolation Base isolated
Dynamic Range 50g peak
Transverse Sensitivity Less than 5%
Operating Temperature -25°C to +90°C
Temperature Sensitivity 0.08%/°C
Case Material Stainless steel
Mating Connector MTN/MH008
Mounting Torque 8 Nm
Weight 140 g (nominal)
Sealing IP67
Category:

Description

Offering the MTN/1100 General Purpose Vibration Sensor, a dependable and sturdy option for continuous vibration measurement in a variety of industrial applications, is iAdept Marketing, a well-known wholesaler, trader, importer, and exporter of industrial monitoring equipment.

High-performance piezoelectric accelerometers like the MTN/1100 are made to keep an eye on the condition of rotating equipment including gearboxes, fans, pumps, and motors. It helps identify issues like imbalance, misalignment, and bearing wear before they become expensive failures by providing precise and reliable monitoring of vibration acceleration or velocity.

The MTN/1100, which may be permanently placed for real-time status monitoring, is IP67-rated for tough locations and comes in a sturdy stainless-steel body. It is compatible with the majority of vibration monitoring systems and data collectors, has a standard IEPE output, and an integrated cable or connector.

The MTN/1100 guarantees long-term dependability and accurate diagnostics, making it perfect for predictive maintenance programs in manufacturing facilities, power plants, and process industries.

All throughout India, iAdept Marketing provides the MTN/1100 sensor with prompt shipping and comprehensive technical support, guaranteeing a smooth integration with your condition monitoring systems.

Key Features

  • Piezoelectric vibration sensor for general purpose use

  • Stainless steel, IP67-rated housing

  • IEPE output compatible with standard monitoring systems

  • Suitable for permanent installation

  • Nationwide delivery and support
