STD 510 Field Balancing Machines
| Feature/Parameter | Specification/Description |
|---|---|
| INSTRUMENT | |
| Frequency Range | 1Hz to 1000Hz (60 RPM to 60,000 RPM) |
| Methods of Balancing | 1. Automatic balancing method 2. Internal optical sensor guided balancing method 3. Manual balancing method |
| Input Signal Level | 4mV to 4.8V peak-to-peak Sensitivity: -40dB |
| Measurement Units | mm/s, g, m/s², micron (µm) |
| Type of Average | RMS, peak or peak-to-peak |
| Sensor Type | Constant current accelerometer |
| Sensor Sensitivity | 100mV/g (standard) |
| Imbalance Indication | a) Using stroboscope/strobe light b) Angle (degrees) with respect to reflective tape with optical sensor |
| Analysis | Vibration signal spectrum with 1024 lines of resolution Sensitivity up to -26 dB |
| Analysis Range | 1Hz to 5000Hz (60 RPM to 300,000 RPM) |
| Alarms | User-defined dual alarm levels for indicate/warn/danger |
| Total Imbalance | Total Value in amplitude mode, independent of RPM |
| Autoscale | Yes |
| Real Time Clock | Yes |
| Auto Power-off | Yes |
| Processor | DSP controller @120MHz |
| Display | 128×64 graphic LCD (backlight adjustable) |
| Processor | DSP controller @120MHz |
| Display | 128×64 graphic LCD (backlight adjustable) |
| Keypad | Membrane keys |
| Power Supply | 11.1V/2.2Ah Li-ion battery with charger |
| Power Usage | 11.1V/160mA (>7 hours continuous operation) |
| Overall Dimensions | 125 x 225 x 50mm |
| Weight | 700g (approx.) |
| TRANSDUCERS | |
| Standard Vibration Transducer | Sensitivity: 100mV/g Max input signal: +5V Peak Mounting: Magnet holder Cable: 4ft |
| Voltage Accelerometer | Sensitivity: 100mV/g (standard range) |
| Built-in Speed Transducer | Measurement Range: 1 to 60,000 RPM Distance: 0.1 to 0.5m Object: Reflective tape on shaft Indicator: LED |
| STROBOSCOPE | |
| Flash Light | Xenon Flash 320V DC |
| Power Supply | 230VAC/50Hz |
| Max Safe Flashing Rate | 50Hz |
- Description
- Reviews (0)
Description

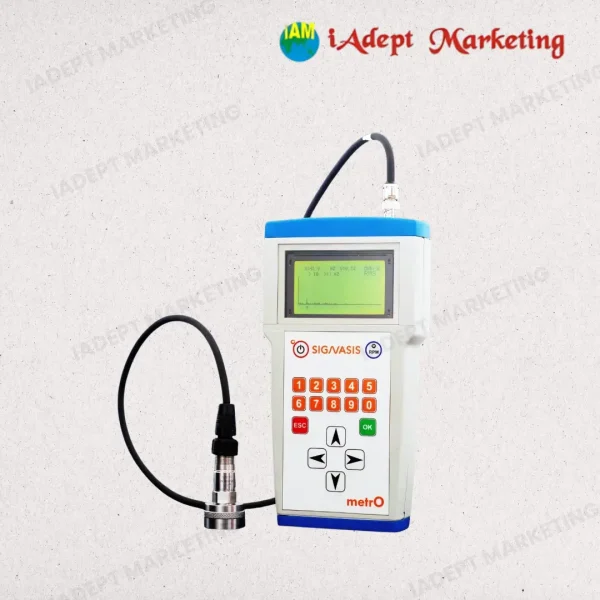

STD 510 – Field Balancing Machine
The STD 510 is a robust, high-performance portable field balancing machine designed for on-site correction of unbalance in rotating equipment. With its advanced DSP controller, comprehensive vibration analysis capabilities, and multiple balancing modes, it provides unmatched versatility and accuracy for industrial maintenance professionals.
Key Features & Specifications – STD 510 Field Balancing Machine
- Frequency Range: 1 Hz – 1000 Hz (60 – 60,000 RPM)
- Balancing Methods: Automatic, Optical sensor-guided, and Manual balancing
- Input Signal Level: 4 mV to 4.8 V peak-to-peak
- Sensitivity: -40 dB
- Measurement Units: mm/s, g, m/s², µm
- Averaging Types: RMS, Peak, Peak-to-Peak
- Sensor Type: Constant current accelerometer (100 mV/g)
- Imbalance Indication: Angle reference via optical sensor and visual stroboscope
- Vibration Analysis: FFT-based spectrum (1024 lines), sensitivity up to -26 dB, 1 Hz – 5000 Hz range (60 – 300,000 RPM)
- Alarms: Dual user-defined thresholds (Indicate / Warn / Danger)
- Total Imbalance Output: Amplitude-based, independent of RPM
- Autoscale & Auto Power-Off: Enabled
- Real-Time Clock: Integrated
- Processor: 120 MHz DSP controller
- Display: 128 × 64 graphic LCD with adjustable backlight
- Keypad: Sealed membrane type
- Battery: 11.1V / 2.2Ah Li-ion, runtime >7 hours
- Power Consumption: 11.1V / 160mA
- Dimensions: 125 × 225 × 50 mm
- Weight: ~700 g
Transducers
- Vibration Transducer: 100 mV/g sensitivity, +5V peak input, magnetic mounting, 4 ft cable
- Built-in Speed Sensor: 1–60,000 RPM range, 0.1–0.5 m sensing distance, works with reflective tape, LED indicator
Stroboscope
- Flash Type: Xenon Flash (320V DC)
- Max Flash Rate: 50 Hz
- Power Supply: 230V AC / 50Hz
Key Benefits
- Portable, Rugged Design: Ideal for field applications in power plants, factories, refineries, etc.
- Multiple Balancing Methods: Tailored to different rotor types and accessibility conditions
- High Accuracy Diagnostics: Vibration spectrum, FFT resolution, and dual alarms
- Long Battery Life: Over 7 hours of uninterrupted analysis
- User-Friendly Interface: Graphic LCD and simple keypad operation
- Stroboscope Integration: Visual phase identification without stopping the machine
Ideal Applications
- Pumps, fans, blowers, motors, and compressors
- HVAC systems and rotating machinery
- Predictive and preventive maintenance tasks
- Vibration diagnostics and rotor fault analysis
