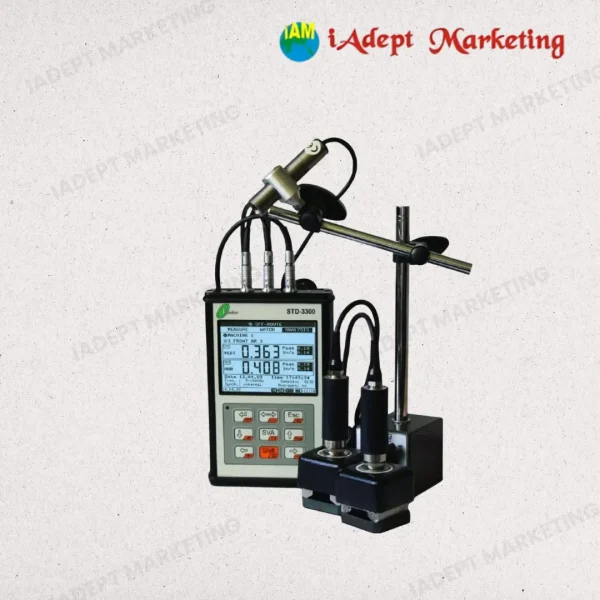

FFT Anlayzer - STD-3300 Vibration Data Collector - Image 1

FFT Anlayzer – STD-3300 Vibration Data Collector

Intrinsically Save FFT Anlayzer – STD-3300 EX Vibration Data Collector
Vibration Analysis Services – Vibexchange Vibration Analysis And Diagnostic Services
0 out of 5
( There are no reviews yet. )

Specification Details
Measurement Channels 2 analog inputs, 1 tacho input
Sensor Type VP-9, VP-11, ICP sensors, tacho-optical sensors, lasers, proximity switches, stationary key phasors, connection to on-line condition monitoring systems
Measurement Parameters RMS, Peak, Peak-to-Peak, Time waveform, Spectrum of acceleration, velocity, displacement, Envelope waveform, Envelope spectrum, Orbits, Run-up/Coast-down, Real-time measurement; Route and off-route data acquisition
Frequency Range Fmin: 0 Hz
Fmax: 500 Hz to 32 kHz
Measurement Range (VP-9, RMS) Displacement: 0–10 mm
Velocity: 0–100 mm/s
Acceleration: 0–500 m/s²
Spectrum Resolution 3200, 6400, 12800, 25600 lines
Sampling Points 8192, 16384, 32768, 65536 points
Averaging 0 to 256 (Linear averaging type)
Category:
Product Brochure
WhatsApp Now

Description

STD-3300 FFT Analyzer – Vibration Data Collector

The STD-3300 is a high-performance FFT analyzer and vibration data collector designed for industrial condition monitoring, troubleshooting, and predictive maintenance. With versatile input support and advanced spectrum analysis capabilities, it offers comprehensive insight into machine health via both route-based and off-route data acquisition.

Key Features

  • Dual Analog Inputs + 1 Tacho Input
  • Supports Multiple Sensor Types: ICP accelerometers, tacho-optical sensors, lasers, proximity switches, and more
  • Full-Spectrum Diagnostics: Time waveform, FFT spectrum, orbits, envelope analysis, coast-down/run-up
  • High Resolution FFT: Up to 65,536 sampling points and 25,600 spectral lines
  • Wide Frequency Range: From 0 Hz up to 32 kHz
  • Real-Time Monitoring & Data Logging

Applications

  • Predictive Maintenance Programs
  • Rotating Equipment Diagnostics (e.g., turbines, motors, pumps)
  • Bearing & Gearbox Fault Analysis
  • Resonance and Structural Monitoring
  • Transient Analysis (Run-up/Coast-down)

Use With (Sensor Compatibility)

  • VP-9/VP-11 Velocity/acceleration probes
  • ICP Accelerometers for wideband measurements
  • Tacho Sensors for phase analysis, synchronous averaging
  • Online Monitoring Interfaces for system integration
