The DC-23 Vibration Analyzer is an advanced, high-performance portable device designed for comprehensive vibration analysis and diagnostic applications. Engineered for industrial condition monitoring, predictive maintenance, and fault diagnostics, the DC-23 offers real-time and post-processing capabilities in a rugged and ergonomic form factor. Its dual-channel synchronous input, wide frequency range, and compatibility with acceleration, velocity, displacement, voltage, and current measurements make it a versatile tool for identifying issues in rotating machinery and electrical equipment. With robust IP65 protection, high-resolution spectral analysis, and support for multiple detector modes such as RMS and peak-to-peak, the DC-23 is ideal for use in demanding industrial environments requiring precise vibration monitoring and fault detection.

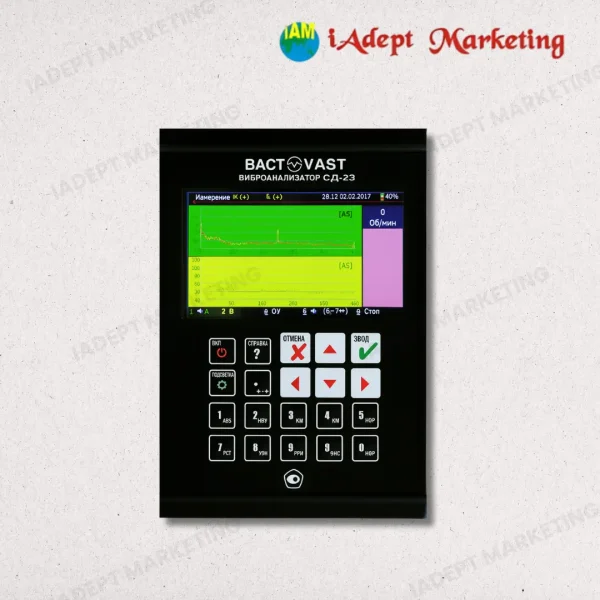

DC-23 Vibration Analyzer
| Specification | Details |
|---|---|
| Model | DC-23 |
| Weight | 1.05 Kg |
| Measurements | Acceleration, velocity, displacement, voltage, electrical current, rotation speed |
| Detector | RMS, peak, peak-peak, peak-factor |
| Number of Channels | 2 channels parallel, synchronous, 1 tacho |
| Frequency Range for Vibration | 0.5 up to 51,200 Hz |
| Frequency Resolution | 400 up to 51,200 lines |
| Dimensions | 142.6 x 194 x 38.6 mm |
| Protection | IP65 |
| Operation Temperature Range | -20 to 50°C |
- Description
- Reviews (0)
Description
DC-23 Vibration Analyzer
Advanced Functionalities
- Real-Time FFT Analysis with up to 51,200 spectral lines
- Time Waveform recording for advanced transient analysis
- Envelope Detection for bearing fault analysis
- Phase Analysis for machine balancing (when used with a tachometer)
- Cross-Channel Processing (e.g., orbit plots, cross-phase)
- Motor Current Signature Analysis (MCSA): Detect rotor bar defects or electrical imbalance
Standard Package Includes
- DC-23 Analyzer Unit
- 2x IEPE-compatible accelerometers with cables
- 1x Tachometer sensor (optical or proximity – model dependent)
- Carrying case (impact-resistant)
- Charging adapter or cable
- USB cable or SD card (based on model)
- Operating Manual
- Calibration Certificate (on request)
Applications
- Rotating Equipment Diagnostics: Fans, pumps, motors, compressors
- Condition Monitoring: Continuous or periodic plant asset checks
- Troubleshooting: Misalignment, unbalance, looseness, bearing wear
- Electrical Fault Detection: Motor windings, rotor bars, power quality
- Advanced Diagnostics: Gearbox analysis, resonance detection, time-synchronous averaging
