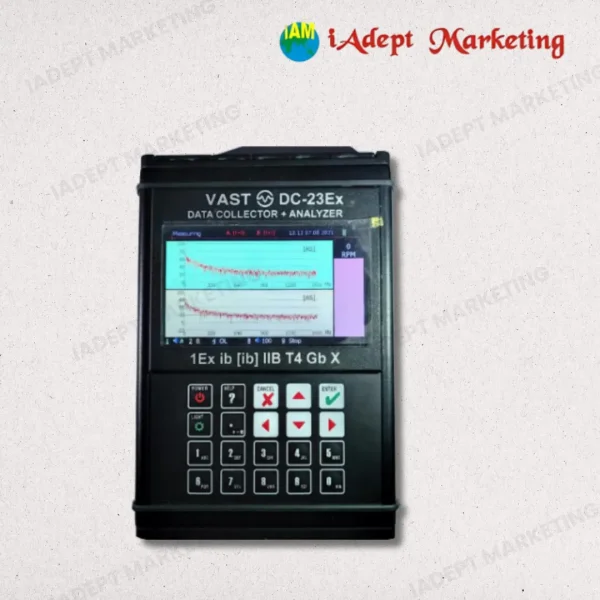

DC-23 Dual Channel Vibration Analyzer

0 out of 5

Input
Channels	2 analog channels 1 synchronization channel
Converter types	Accelerometer, current clamp, tacho, microphone
Frequency range	0.5 – 51200 Hz
Non-linearity of AFR	+/- 5% (0.5 dB)
Channel interference	-100 dB
Vibration parameters
Measured parameters	Displacement, velocity, acceleration
Detector	RMS, peak, peak-to-peak, peak-factor
Measurement of vibration broadbands according to	2.1000, 10.1000, 10.2000 Hz 2.200, 3.300, 5.500, 10.5000, 500.2500 GOST: 625.2500, 1200.2500, 2500-5000, 5000.10000 Additional: 10000-25000, 17000-25000 Hz
Spectral analysis
Border frequency	from 25 to 51200 Hz
Frequency resolution	from 400 to 51200 lines
Dynamic range	≥100 dB
Enveloped spectra	1/3 octave, Hz: 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 5000, 6400, 8000, 10000, 12800, 16000, 20000 1/1 octave, Hz: 50, 100, 200, 400, 800, 1600, 3200, 6400, 8000, 12800, 16000
General info
Protection	IP65 (dust- and moisture–proof)
Operating temperature range	-20 / +50°C
Device weight without sensors	1 kg
Dimensions	143 x 194 x 39 mm
Operating time	≥8 hrs
Charging time	≤4.5 hrs

Category: Vibration Analyzer

Description

Advanced Vibration Monitoring System Analyzer: The DC-23 Dual Channel Vibration Analyzer is a high-performance diagnostic device designed for accurate machinery condition assessment within any Vibration Monitoring System.
Dual-Channel Precision for Vibration Monitoring System: With two analog input channels and one synchronization channel, the DC-23 enables simultaneous multi-signal analysis for advanced Vibration Monitoring System applications.
Wide Frequency Capability for Vibration Monitoring System: Supporting a frequency range from 0.5 Hz to 51,200 Hz, the analyzer delivers detailed vibration insights across low- and high-speed machinery.
Portable and Industrial-Grade Vibration Monitoring System Tool: Compact, lightweight, and rugged, the DC-23 is ideal for field engineers and maintenance teams implementing portable Vibration Monitoring System solutions.

Multi-Sensor Compatibility in Vibration Monitoring System: The DC-23 supports accelerometers, current clamps, tachometers, and microphones, making it versatile for any Vibration Monitoring System setup.
High Accuracy Signal Conversion for Vibration Monitoring System: Features low non-linearity (±5%) and channel interference of -100 dB to ensure clean, reliable vibration data.
Comprehensive Vibration Parameters for Vibration Monitoring System: Measures displacement, velocity, and acceleration to provide complete machinery health diagnostics.
Advanced Detection Modes in Vibration Monitoring System: Supports RMS, peak, peak-to-peak, and peak-factor detection for detailed fault identification.

Broadband Vibration Measurement for Vibration Monitoring System: Supports multiple broadband frequency ranges aligned with international vibration standards.
Compliance with GOST Standards in Vibration Monitoring System: Enables vibration measurements according to GOST frequency bands for regulated industrial environments.
Extended High-Frequency Analysis for Vibration Monitoring System: Additional measurement bands up to 25,000 Hz allow detection of bearing and gear defects.

High-Resolution FFT Analysis for Vibration Monitoring System: Offers frequency resolution from 400 to 51,200 lines for precise spectral diagnostics.
Wide Dynamic Range in Vibration Monitoring System: ≥100 dB dynamic range ensures accurate detection of both low-level and high-energy vibration signals.
Enveloped Spectra Analysis for Vibration Monitoring System: Supports 1/3 octave and 1/1 octave envelope spectra for advanced bearing fault detection.
Flexible Border Frequency Selection for Vibration Monitoring System: Adjustable border frequency from 25 Hz to 51,200 Hz enhances diagnostic flexibility.

Industrial Protection for Vibration Monitoring System: IP65-rated enclosure provides dustproof and moisture-resistant operation in harsh environments.
Wide Operating Temperature Range for Vibration Monitoring System: Designed to function reliably from -20°C to +50°C.
Lightweight Design for Portable Vibration Monitoring System: Weighs only 1 kg (without sensors), enabling easy field deployment.
Compact Dimensions for Vibration Monitoring System: Ergonomic size of 143 × 194 × 39 mm ensures ease of handling and transport.
Long Battery Life for Vibration Monitoring System: Provides ≥8 hours of continuous operation with a charging time of ≤4.5 hours.

Professional-Grade Accuracy for Vibration Monitoring System: Delivers precise vibration measurements trusted by reliability engineers and maintenance professionals.
Versatile Diagnostic Tool for Vibration Monitoring System: Suitable for rotating machinery, motors, pumps, fans, gearboxes, and bearings.
Field-Proven Reliability in Vibration Monitoring System: Rugged design and stable performance make it ideal for continuous industrial use.
Comprehensive Analysis in a Single Vibration Monitoring System Device: Combines time waveform, FFT, broadband, and envelope analysis in one analyzer.
Ideal for Predictive Maintenance Online Vibration Monitoring System: Enables early fault detection, reduces downtime, and optimizes maintenance planning.
