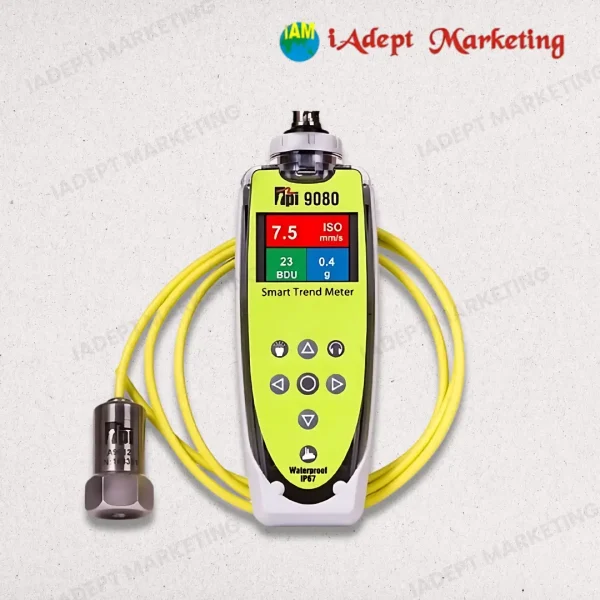

Intrinsically Save Vibration Meter TPI 9080 (EX) Vibration Meter Route Based With Strobe
| Specification | Details |
|---|---|
| Size | H 7.95” W 2.36” |
| Weight | 9.8oz (280g) |
| Environmental | Water: IP67 Waterproof Operating: 32°F to 122°F (0°C to 50°C) Storage: -4°F to 158°F (-20°C to 70°C) |
| Power supply | 2xAA batteries |
| Battery life | 2-years standby, 1,500 measurements or approx. 50 hours of normal use |
| Frequency ranges | ISO: 2/10Hz – 1kHz g: 2Hz – 10kHz |
| Frequency resolution | 100 / 800 lines |
| Displayed amplitude units | Acceleration in g / velocity in inches per second or mm per second / Bearing damage in BDU |
| Displayed frequency units | Hz, CPM or RPM |
| Input range | +/- 60 g |
| Dynamic range | 96 dB |
| Auto set up of VA bands | Yes |
| Accelerometer connection | BNC connector cable with removable magnet (1mV/g – 10,000mV/g) |
| Communication | Bluetooth or USB docking station and cable to PC; data integration using VibTrend software |
| Reading storage | 10 assets/10 readings per asset standard; unlimited assets/10 readings per asset with optional A9048 VibTrend Pro software |
| Standard accessories | A9012 IEPE accelerometer with cable and A9073 magnet, A9081 docking station with USB cable, A9083 VibTrend Standard software and carrying case |
| Optional accessories | A9084 VibTrend software Pro version, A9082 Strobe/Flashlight, A9094 VibTrend asset headset, A9072 4-inch stinger and A9006 Protective boot magnets |
- Description
- Reviews (0)
Description
9080 EX Vibration Meter – Route-Based Vibration Analysis with Optional Strobe
The 9080 EX Vibration Meter is an advanced route-based vibration analysis tool, ideal for predictive maintenance and machine diagnostics. Designed for industrial reliability and ease of use, it integrates seamlessly with VibTrend software for efficient data management and trend analysis.
Whether you’re monitoring bearing condition, vibration levels, or diagnosing imbalance and misalignment, the 9080 EX offers precise measurements in a lightweight, IP67 waterproof handheld device.
Key Features
- Route-Based Vibration Monitoring: Store and organize readings for up to 10 assets (expandable)
- Multiple Measurement Units: g, mm/s or in/s, and BDU (Bearing Damage Units)
- Wide Frequency Range: ISO mode (2/10 Hz – 1 kHz) and g mode (2 Hz – 10 kHz)
- Auto VA Band Setup: Simplifies condition-based monitoring
- Bluetooth & USB Communication: Effortless data transfer to PC via VibTrend software
- Optional Strobe Integration: For rotating speed measurement and inspection
Standard Accessories
- A9012 IEPE Accelerometer (with cable)
- A9073 Magnet
- A9081 Docking Station with USB
- A9083 VibTrend Standard Software
- Carrying Case
Optional Accessories
- A9082 Strobe/Flashlight (speed inspection)
- A9084 VibTrend Pro Software
- A9094 Asset Headset
- A9072 4″ Stinger
- A9006 Protective Boot Magnets
Ideal Applications
- Predictive maintenance in rotating machinery
- Route-based condition monitoring
- On-site diagnostics with strobe-assisted speed checks
- Vibration and bearing damage trending
