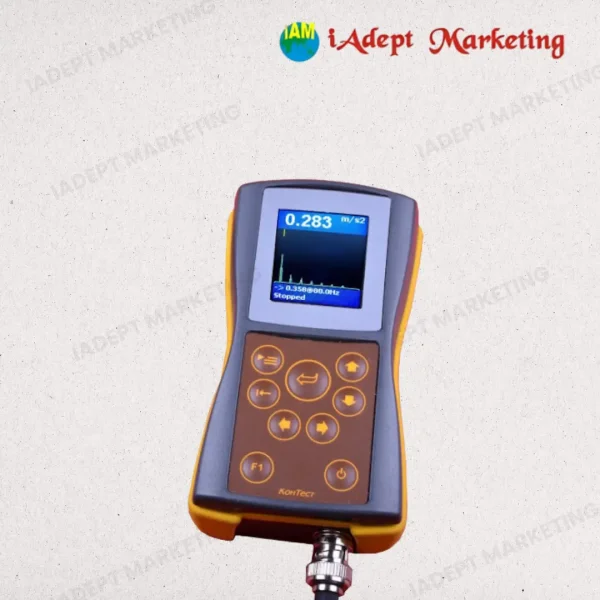

107VF Vibration Meter
| Specification | Details |
|---|---|
| Inputs | IEPE or charge type accelerometers with known sensitivity, switchable. Optical RPM transducer with IR pyrometer sensor (optional) |
| AD Conversion | 24 bits |
| Dynamic Range | 106 dB |
| Frequency Range | 1…10,000 Hz |
| Vibration Measurement Range | |
| Acceleration | 200 m/s² |
| Velocity | 200 mm/s |
| Displacement | 2000 µm |
| Accuracy | ±5% |
| Temperature Measurement Range | |
| Range | -70°C to 380°C |
| Accuracy | ±0.5% (0…+60°C), ±1% (40…+120°C), ±2% (70…+180°C), ±4% (-70…+380°C) |
| Tachometer Measurement Range | |
| Range | 10…200,000 rpm |
| Accuracy | ±0.1% and ±1 rpm |
| FFT Spectrum Resolution | 400, 800, 1600 lines |
| Data Storage | 4GB micro SD card, built-in |
| PC Interface | USB |
| Display | Color, sunlight readable 128×160 dots |
| Battery | Li-Po rechargeable, up to 8 hrs continuous operation |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | Unspecified |
| Dimensions | 132 x 70 x 33 mm |
| Weight | 150 g |
- Description
- Reviews (0)
Description
107VF Vibration Meter
The 107VF series is a versatile family of industrial-grade vibration meters designed for robust performance in condition monitoring and predictive maintenance tasks. Available in multiple configurations, the meter is ideal for measuring machine vibration levels to assess health and detect potential failures.
Key Features
- Multiple model variants tailored for different diagnostic requirements
- User-friendly LED display with keyboard for quick operation
- Compact and durable design suited for industrial environments
- Designed for accurate and repeatable vibration readings
Ideal For
- Machinery maintenance and inspection
- Early fault detection
- Routine vibration checks in industrial plants
- Training and demonstration setups
