107 VF-BE Shock Pulse Bearing Analyzer
| Feature/Parameter | Specification/Description |
|---|---|
| Inputs | IEPE or charge type accelerometers with known sensitivity, switchable. Optical RPM transducer with IR pyrometer sensor (optional) |
| AD conversion | 24 bits |
| Dynamic range | 106 dB |
| Frequency range | 1…10000 Hz |
| Vibration measurement range: | |
| Acceleration | 200 m/s² |
| Velocity | 200 mm/s |
| Displacement | 2000 µm |
| Accuracy (Vibration) | ±5% |
| Temperature measurement range | -70°C to 380°C |
| Accuracy (Temperature) | ±0.5% (0…+60°C), ±1% (-40…+120°C), ±2% (70…+180°C), ±4% (-70…+380°C) |
| Tachometer measurement range | 10…200,000 rpm |
| Accuracy (Tachometer) | ±0.1% and ±1 rpm |
| FFT spectrum resolution | 400, 800, 1600 lines |
| Data storage | 4GB micro SD card, built-in |
| PC interface | USB |
| Display | color, sunlight readable 128×160 dots |
| Battery | Li-Po rechargeable, up to 8 hrs continuous operation |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | — |
| Dimensions | 132 x 70 x 33 mm |
| Weight | 150 g |
- Description
- Reviews (0)
Description

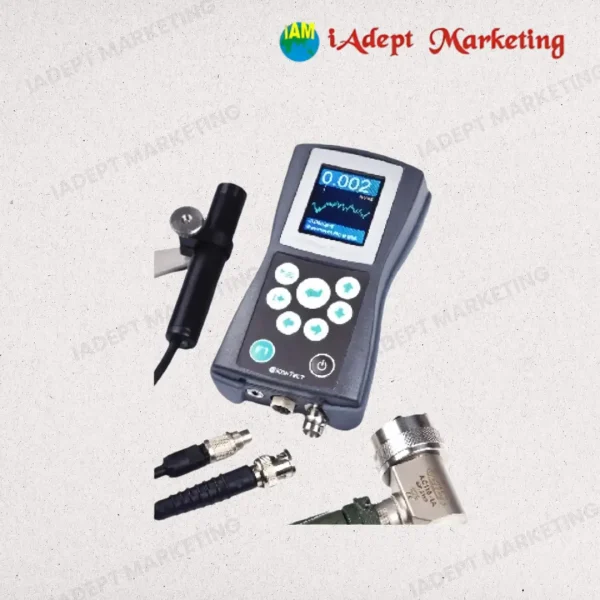

107 VF-BE Shock Pulse Bearing Analyzer
The 107 VF-BE is a compact and powerful device designed for in-depth condition monitoring of rotating machinery. Built with industrial environments in mind, it combines high-resolution shock pulse and vibration analysis with temperature and speed measurement, all in a pocket-sized, user-friendly tool.
Key Capabilities:
- Multi-Sensor Support: Compatible with both IEPE and charge-type accelerometers. An optional optical RPM transducer with integrated infrared pyrometer adds further diagnostic flexibility.
- High Precision Measurements: Featuring 24-bit A/D conversion and a dynamic range of 106 dB, the analyzer ensures accurate data across a broad range of operating conditions. Vibration measurements include acceleration up to 200 m/s², velocity up to 200 mm/s, and displacement up to 2000 µm, all with ±5% accuracy.
- Broad Temperature & RPM Range: Measures surface temperature from -70°C to 380°C with high accuracy (as precise as ±0.5% in standard ranges). The built-in tachometer reads speeds from 10 to 200,000 RPM, accurate to ±0.1% or ±1 RPM.
- Powerful Frequency Analysis: Performs FFT spectral analysis with selectable resolutions of 400, 800, or 1600 lines, allowing detailed fault diagnosis in bearings and other components.
- User-Friendly Interface: A bright, color display (128 × 160 resolution) remains readable even under sunlight. The device is operated easily via buttons and displays intuitive feedback for in-field use.
- Reliable Data Handling: Stores measurement data on a built-in 4GB micro SD card and connects to a PC via USB for analysis and reporting.
- Portable and Durable: Housed in a rugged enclosure, the unit is compact (132 × 70 × 33 mm) and lightweight (just 150 grams). Its rechargeable lithium-polymer battery supports up to 8 hours of continuous operation.
- Environmental Readiness: Built for industrial environments, the unit operates within 0°C to 50°C and can be stored safely in temperatures from -20°C to 60°C.
Why Choose the 107 VF-BE?
- Combines shock pulse, vibration, temperature, and RPM in one device
- Highly portable and field-ready with long battery life
- Accurate data acquisition even in demanding environments
- Built-in storage and USB connectivity streamline data workflows
- Ideal for predictive maintenance teams and vibration specialists
