Vibration Analyzer107VF Vibration Meter
Specification
DetailsInputs
IEPE or charge type accelerometers with known sensitivity, switchable.
Optical RPM transducer with IR pyrometer sensor (optional)AD Conversion
24 bitsDynamic Range
106 dBFrequency Range
1…10,000 HzVibration Measurement Range
Acceleration
200 m/s²Velocity
200 mm/sDisplacement
2000 µmAccuracy
±5%Temperature Measurement Range
Range
-70°C to… -
Vibration AnalyzerDC-23 Dual Channel Vibration Analyzer
Input
Channels
2 analog channels
1 synchronization channelConverter types
Accelerometer, current clamp, tacho, microphoneFrequency range
0.5 – 51200 HzNon-linearity of AFR
+/- 5% (0.5 dB)Channel interference
-100 dBVibration parameters
Measured parameters
Displacement, velocity, accelerationDetector
RMS, peak, peak-to-peak, peak-factorMeasurement of vibration…
-
Vibration AnalyzerFFT Anlayzer – STD-3300 Vibration Data Collector
Specification
DetailsMeasurement Channels
2 analog inputs, 1 tacho inputSensor Type
VP-9, VP-11, ICP sensors, tacho-optical sensors, lasers, proximity switches, stationary key phasors, connection to on-line condition monitoring systemsMeasurement Parameters
RMS, Peak, Peak-to-Peak, Time waveform,… -
Vibration AnalyzerIntrinsically Safe Bearing Analyzer Vibrometer CM-21 (EX)
Specification
DetailsFrequency Range
0.5 – 51200 HzWeight
1 kgCharging time
4.5 hrsDimensions
143 x 194 x 39 mmOperating time
8 hrs -
Vibration AnalyzerIntrinsically Safe DC-23 EX Vibration Analyzer With Diagnostic Software
Specification
DetailsModel
DC-23Weight
1.05 KgMeasurements
Acceleration, velocity, displacement, voltage, electrical current, rotation speedDetector
RMS, peak, peak-peak, peak-factorNumber of Channels
2 channels parallel, synchronous, 1 tachoFrequency Range for Vibration
0.5 up to 51,200 HzFrequency Resolution
400 up to 51,200… -
Vibration AnalyzerIntrinsically Safe FFT Anlayzer – STD-3300 EX Vibration Data Collector
Specification
DetailsMeasurement channels
2 analog inputs, 1 tacho inputSensor type
VP-9, VP-11, ICP sensors, tacho-optical sensors, lasers, proximity switches, stationary key phasors, connection to on-line condition monitoring systemsMeasurement parameters
RMS, Peak, Peak-to-Peak, time waveform,… -

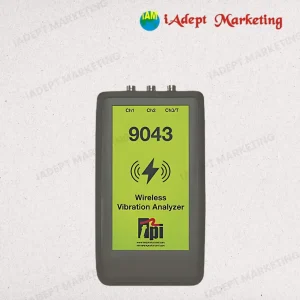

Vibration AnalyzerTPI 9043 -Vibration Analyzer
Specification
DetailsSimultaneous Channel Capture
3 ChannelsInput
IEPE (Powered and Unpowered), DC or AC voltageAmplitude
+/-0.5V, +/-5V, +/-30VFrequency Range / Resolution
1-Channel Mode: DC to 30kHz, 100 to 51,200 Lines
3-Channel Simultaneous: DC to 10kHz, 100 to… -
Vibration AnalyzerTPI 9075K1 & 9075K2 Vibration Analyzer
Sampling Frequency
up to 10kHz Fmax and 51,200 linesAD Converter
24 bit ADMeasurement Range
2/10Hz to 1kHz: ISO standard for assessing Unbalance, Misalignment or Looseness
1kHz to 10kHz: BDU range for identification of Bearing… -
Vibration AnalyzerViba8 Hand-Arm and Whole Body Vibration Meters
Feature/Parameter
4 Channel (9034)
8 Channel (9038)IEPE Accelerometer Input Channels
4
8Accelerometer Sampling Frequency
2 Hz – 25.6 kHz
2 Hz – 25.6 kHz4-20 mA Output Channels
4
824VDC Digital Outputs
4
824VDC Digital Output Current Max
100 mA
100 mADigital Output…
-
Vibration AnalyzerVibration Analysis Services – MFF Machine Fault Finder Services & Software
Specification
DetailsService Location
Pan IndiaBrand
Iadept MarketingService Mode
OfflineType
Fault Finder MachineService Type
MFF Machine Fault Finder Services & Software
